2025 New High Speed CNC Drilling Cutting Machine for Metal Steel Beam U Channel Steel Peb Profiles

Product Description

2025 New High Speed CNC Drilling Cutting Machine for Metal Steel Beam U Channel Steel PEB Profiles
(With Automatic Tool Changer)

This machine is mainly used for processing holes on H-beam, channel beam with high speed, the positioning, feeding of three spindles are all driven by servo motor. It adopts spindle servo motor, controls by CNC system, and in-feeding by CNC carriage, high efficiency, and high precision; and it is wildly used in construction, bridge and other industries.

MACHINE FEATURES

1. The whole machine is optimized integrated design, with high quality casting machine body and drilling units, which ensure high stability and high rigidity when high speed drilling.

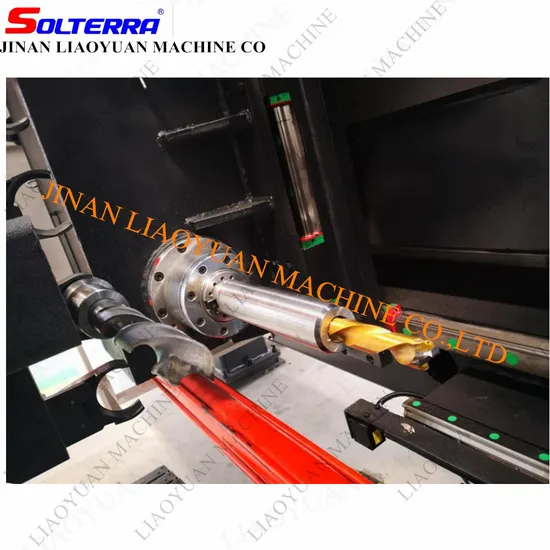

2. Used high-speed precision spindle from Taiwan's well-known brand, model BT40, which can meet the using demand of both hard alloy and high-speed steel drill. Every CNC axes are guided by the heavy loading roller linear guide, driven by the servo motor and roller screw which ensure the rigidity and positional accuracy.
3. With the trolley conveyor system and surface detector which realize the accurate positioning, ensure the processing precision.
4. Installed 3 inline type tool magazine, which realize the automatic tool change, also meet the demand of drilling multiple diameter's hole. Oil spray and air spray cooling, has inner cooling and outer cooling efficacy.
5. The CNC control system is the FAGOR/SYNTEC. Strong anti-interference, high precision, because of the digital communication, thus overcome the defect of easy be interference in traditional pulse analog transmission.
6. In order to ensure the accuracy, reliability and stability of transmission system, electrical system, hydraulic system, all the key components are from international famous brand.

TECHNICAL PARAMETERS

Model				THD1250C
Work Piece Size	H-Shaped Steel (web Height x flange width)		Max	1250 x 600mm
			Min	150 x 75
	Length (mm)	Auto Feeding		≥2700
		Manual Feeding		≥600
	Max Work piece weight(kg)			10000
	Max Thickness of web & flange(mm)			80
	Drilling Diameter (mm)			Φ32 for Carbide Drill Bit
				Φ40 for HSS bit
Drilling Spindles	Spindles number			3
	Rotating speeds(Steples speed adjustment)			30-3000rpm/min
	Power of Spindle Motors			3x11KW
	Feeding speed (mm/min)			20-300
Overall Dimensions(L x W x H)(mm)				6000x2100x3400
Gross Weight				≈18500 (Appr.)

LIAOYUAN CO' SERVICE

Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to instal the machine,
* 24 Hours on services Phone, email and in person support training how to use the machine.
* View our Factory. * Stay in touch with the customers even after
* Electrical & mechanical technical support the deal. never ignore their calls.
* Parts ordering * Engineers available to service machinery overseas
LIAOYUAN COMPANY PROFILE

JINAN LIAOYUAN MACHINE COMPANY INFORMATION
Jinan Liaoyuan Machine Co is located in Jinan, Shandong province of China. Our company is a one of the world leader Manufacturers in CNC machine tools. Jinan Liaoyuan has focused on top quality CNC machine products for over 20 years in China. We started as a small operation, but now have become one of the leading suppliers in the CNC machine industry in Shandong. We are a manufacturer and trader specialized in the research, development and production of all kinds of CNC machine, such as: CNC Angle Steel Punching machine, CNC Angle Steel drilling machine, CNC Plate Drilling Cutting machine, CNC Beam Drlling Marking Beveling machine, CNC Band Saw Cutting Machine and all kinds of CNC machine center and so on. Jinan Liaoyuan Machine provide turkey solution and perfect service to satisfy your production needs.
JINAN LIAOYUAN CNC HISTORY * Founding period (1991-2008)
* Continuous growth (2008-2013)
* Innovation expansion (2013-2017)
* JINAN LIAOYUAN MACHINE today


The machines manufactured by JINAN LIAOYUAN are being used in the fields from steel structure to angle towers, metal construction, pipe, pressure vessels, ship construction, bridge construction, wind-energy, heat exchanger industry fields, and they are also offered for usage in many other different fields.

LIAOYUAN MACHINE QUALIFICATION


PACKAGES AND DELIVERY

CUSTOMER FEEDBACK

FAQ
Question 1. Are you a Manufacturer or a trading company?
Answer 1. We are not a trading company,We are the top Machine Manufacturer,Which involves Raw materail casting,Machine body processing,Machine assembling,Painting,Machine quality Inspecting and etc.
Q 2. What is the minimum quantity for order ?
A2: Normaly One Set. and We will give some discounts if you can buy one complete set of Machine.
Q3. Do you have stock product ready to deliver?
A 3. We have many machines in stock, So We can guarantee the fast delivery time
Q4. How do you deliver the finished products?
A 4, For FCL, We delivered by Sea
For LCL, We delivered by Sea and by Plane for only urgent requirement
For Spare Parts,We delivered by Courier,TNT, FEDEX,DHL,UPS,EMS, and Etc.

---
