Plastic Crusher Pet Bottle Crusher

Product Description

PET bottle crusher,
Pet bottle crushing machine, plastic bottle crusher plastic bottle crushing machine.
According to our rich experience for 20 more years and thousands of practices, this line is mature already. In order to solve the feeding material into extruder, we improve the design of force feeder, what's more, we plus a big storage for crushed material. We do this because crusher has time to rest for a while and then go on working smoothly.
This line consists of belt conveyor, crusher, big storage, single screw extruder, twin screw extruder, cooling water tank, pelletizer, final product silo.
Consideration for our customer we will design different line for our customer:
1: We provide different capacity for our customer: 500kg/h to 1000kg/h
2: According to your material, you may choose different models.
3: Our customer may purchase separate device based on his own conditions.
4: We providing turn-key project for our customer. Design-product-installment-testing.
5: Based on your workshop condition, Our design always matched to your workshop mostly.
We sincerely wish our new products will bring win-win for both of our customer and us.

Model SWP200 SWP210 SWP320 SWP360 SWP380 SWP400 SWP630 Diameter of Rotating Blade 200 210 320 360 380 400 630 Rotating Blade Quantity 3 3 6/2 12/4 12/4 5 9/2 Rotating Speed of Rotating Blade(r/min) 870 500 650 650 650 500 480 Fixed Blade Quantity: 2 2 2 8/4 8/4 2 4/2 Aperture of Screen(mm) φ 8 φ 8 φ 48 φ 10 φ 10 φ 10 φ 10 Grinding Capacity(kg/h) 50-110 80-120 250-350 100-400 100-40 350-450 700-850 Power(kw) 4 4 11 11 27.5 13.2 44 Aperture of Feed Inlet(mm) 240*350 250*230 500*280 268*120 268*1120 375*320 820*610 Machine Weight(kg) 300 320 1400 80 800 980 5000

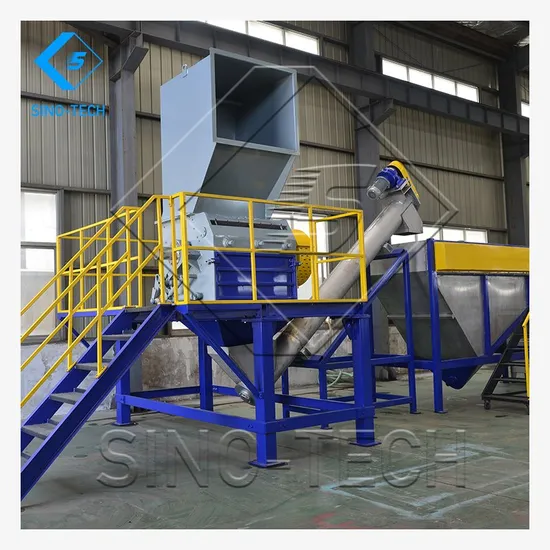

MACHINE PICTURE:
PROCESSING MACHINE
Any question, contact with me

---
