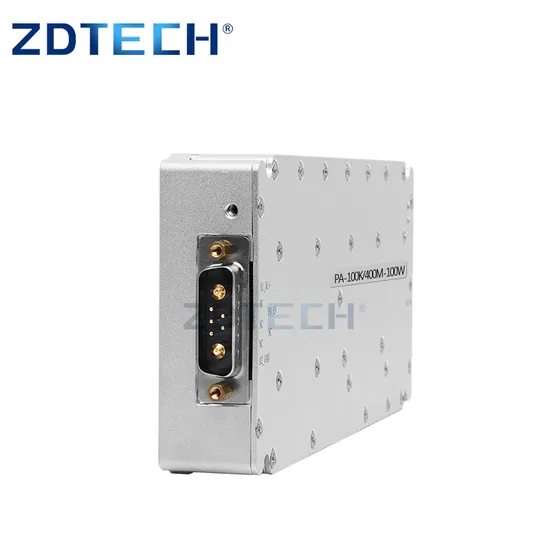

High Frequency Power Amplifier Module for Jammer 100K-400MHz 100W

US$150.00
1-299 Pieces
US$127.00
300-499 Pieces
US$117.00
500-999 Pieces
US$107.00
1,000+ Pieces

Basic Info.

Model NO.
ZD-PA-100K/400M-100W
Support Network
WiFi GPS GSM
Information content
Data
Certification
ISO
Condition
New
Frequency Band
Customized
Output RF Port
N-K
Power Current
<18A
RF Input Interface
SMA-F
RF Output Interface
N-K
Vcc Power Supply Reference
48V/50A
Transport Package
by Box
Specification
273*123.5*31.5 MM
Trademark
ZD TECH
Origin
China
HS Code
8517709000
Production Capacity
2000pieces/Month

Packaging & Delivery

Package Size
25.00cm * 20.00cm * 5.00cm
Package Gross Weight
2.000kg

Product Description


100KHz-400MHz 100W Power Amplifier
1. RF technical parameters
Electrical performance index:
Item
Parameter
Frequency 100KHz-400MHz
Gain ≥48dB
Input power 3±1 dBm
MAXIMUM INPUT +10dBm
Output CW saturation power ≥90-100W
Passband Ripple ≤4±1dB
Temperature protection 80 degree protection, no open circuit protection
Working current ≤8-13.5A
Input port standing wave ≤2.0
Clutter rejection ≥65dBc
Harmonic suppression ≥10dBc
Rf input interface SMA-F
Rf output interface N-K
32V power supply port CAPACITOR FEED
Power amplifier PTT switch port Power amplifier is off by default,3.3-5V is on
VCC power supply reference 32V/16A
VCC Maximum voltage +33V
Overall dimensions without connectors ≤273 x123.5 x 31.5 Unit: mm
operating temperature -25ºC~+55ºC
Installation A heat sink is required for the power amplifier test
