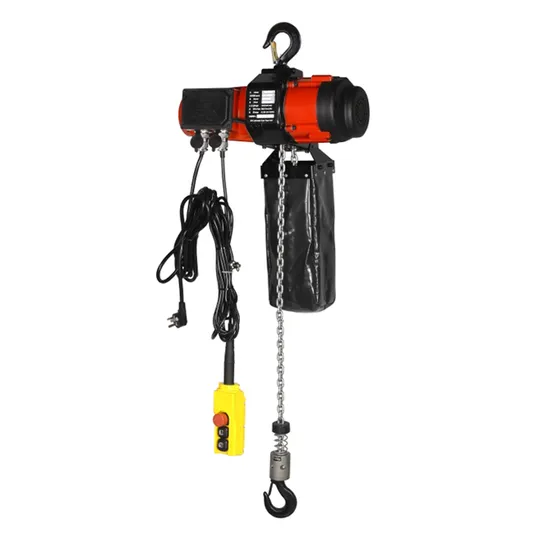

Electric Chain Hoist Permanent Magnet Brushless Motor Double Speed

Product Description

Electric Chain Hoist Permanent Magnet brushless Motor double speed
SIZE SPECIFICATIONTECHNICAL PARAMETER

MODEL	Capacity(KG)	Motor KW	Lift Speed (M/MIN)		Chain mm*M	Power Line M	Control Wire M	A	B	C	L	H	G.W/N.W	CARTON
			Slow	Fast				mm	mm	mm	mm	mm	KG	cm
NH125DS	125	1.5	5	9	5*15	4.5	2.5	443	202	35	175	420	18/16	50*25*40
NH250DS	250	1.5	4	7	5*15	4.5	2.5	443	202	35	175	420	18/16	50*25*40
NH500DS	500	2.5	5	9	5*15	4.5	2.5	443	202	35	175	420	18/16	50*25*40
NH750DS	750	2.5	4	7	6*19	4.5	2.5	443	202	35	175	420	20/18	50*25*40
NH1000DS	1000	2.5	3	5	7*21	4.5	2.5	443	202	35	175	420	22/20	50*25*40

Features
1: Permanent magnet frequency conversion technology, stable lifting and falling without shaking. Intelligent integrated control appliances can save energy by more than 45%. Electrical control 4v low voltage is safe and reliable, no worry about electric shock
2: Overload and overheat protection can ensure safe and durable, and high and low speed can be switched at will, which make the machine suitable for different scenarios
3: Optional-accurate weight display and real-time monitoring, record keeping for query, wireless control + wireless communication
4. Double safety brake device: When the power is off, the motor decelerates instantly and the mechanical ratchet brake take action at the same time.
5. The switch line and power line are designed separately, which is easy to install.
6. Small button switch, easy operation
7. The main unit is small in size and light in weight and can be moved quickly.
8. Single-phase 110V (single-phase 220V).
9. When the chain reaches the upper or lower limit, the micro switch will be triggered, and the circuit is automatically cut off to prevent machine collision.
WORKSHOP AND WAREHOUSE
SIMILAR products
FAQ
Q1: Are you a factory or a trading company?
We have our own factory for produce hoist.
Q2: Can you print OEM brand for customers?
A3: Yes, the OEM is acceptable.
Q3: How long is the warranty on your products?
A5: We provide 12 months warranty for our entire product, but easy worn parts not including.
Q4: What's the lead time for production?
A6: Usually around 15-20 days after payment received, Holiday period will prolong.
Q5: What Payment terms do you accept?
A7: T/T is preferred; if you want any other method please contact us for discussing.

---
