Product Details
Product Description
Product Description

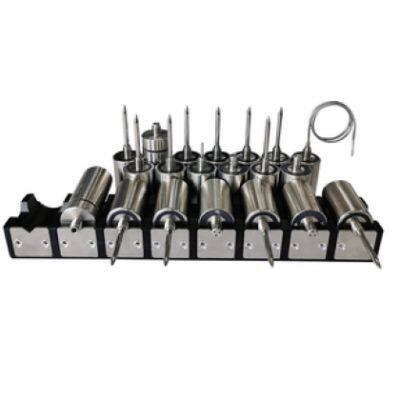

Ⅰ. Warehouse temperature and humidity verification system product features:
1, high precision temperature accuracy: ± 0.2 ℃, humidity accuracy: ± 2.5% RH
2, wide range of temperature measurement: -200 ℃ ~ 300 ℃
3, the validator probe type can be selected, high temperature / low temperature / room temperature / temperature and humidity
4, sampling frequency can be set according to specific requirements: 1 second to 24 hours
5, can automatically calculate the volatility, deviation, uniformity
6, warehouse temperature and humidity verification system verification software, in line with FDA 21CFRPart 11 provisions of the specification requirements, in line with JJF1101-2003 environmental temperature and humidity equipment calibration specifications, in line with the GSP/GMP requirements. Warehouse temperature and humidity verification system
Ⅱ. Application Scope:
Warehouse temperature and humidity verification system is mainly developed for GSP and GMP requirements, applicable to pharmaceutical warehouses, refrigerated trucks, refrigerated boxes, constant temperature and humidity boxes, ultra-low-temperature refrigerators and liquid nitrogen tanks and other equipment verification.
Ⅲ. Warehouse temperature and humidity verification system technical parameters table
Probe Model
| DT-T11LY
| DT-T11Y
| DT-TH11Y
| DT-T11HY
|
Test Range
| -200℃~50℃
| -40℃~100℃
| -20℃~80℃
0%RH~100%RH
| 0℃~300℃
|
Accuracy
| ±0.5°C (-80°C~50°C) Others: ±1°C
| ±0.2°C (0°C~60°C) Others: ±0.3°C
| ±0.2°C (0°C~60°C) Others: ±0.3°C ±2.5%RH Full Range
| ±0.5°C (0°C~100°C) Others: ±1°C
|
Resolution
| 0.1℃
| 0.1℃
| 0.1℃
| 0.1℃
|
Recording Capacity
| 32700
| 32700
| 16350
| 32700
|
Communication
| USB2.0
| USB2.0
| USB2.0
| USB2.0
|
Battery
| 3.6V Lithium Battery
| 3.6V Lithium Battery
| 3.6V Lithium Battery
| 3.6V Lithium Battery
|
Battery life
| 1 year (typical application)
| 1 year (typical application)
| 1 year (typical application)
| 1 year (typical application)
|
Start method
| Timed start
| Timed start
| Timed start
| Timed start
|
Stop Mode
| Timed stop or mark full stop
| Timed stop or mark full stop
| Timed stop or mark full stop
| Timed stop or mark full stop
|
Instrument Size
| 83mm×52mm×22mm
| 83mm×52mm×22mm
| 83mm×52mm×22mm
| 83mm×52mm×22mm
|
Probe Length
| 2 meters (can be customized)
| 2 meters (can be customized)
| 2 meters (can be customized)
| 2 meters (can be customized)
|
>>
