High Quality Oil/Gas/Air/Water Electric Ball Valve, Electric Actuator, Motorised Ball Valve

Product Description

Ball Valve With Electric Actuator
Actuator Product Overview

Rated Voltage	AC/DC95-265V, AC/DC24V, DC24/12V
Roted Torque	110N.m(132N.m@Max)
Running Time	About 10S
Charge Time	5 minutes
Install Valves	2-way, 3-way ball valve and butterfly valve
Mechanical connector	ISO5211(F05, F07)
Motor	High performance brushless motor, it can be used up to 20000 times
Wiring and feedback model	KT32S/B3S/BD3S(General voltage), B2S(DC24/12V)
Material	It's full-plastic outlet case:ABS/PC+PET corrosion-proof Die casting base+metal gear box install, high hardness, durable.

Wiring diagrams
Ball Valve Overview

	Metal electric ball valve	Plastic electric ball valve
Valve caliber	DN10-DN300	DN10-DN100
Connection model	Thread/Flange/Clamp	Thread/Flange/Order
Valve category	Three piece/two piece/three way	Through/three way
Body material	SS304/SS316/SS316L	UPVC/CPVC/PVDF
Medium	Material properties of gas, water, oil, other PH reference valve body	Acidic,alkaline,other compatible PVC chemical solutions
Medium temperature	-20 to +180ºC	No condensation at -5 to +60ºC
Nominal pressure	PN16, PN25, PN40, PN64	PN16
Application area	Widely used in food, environmental protection, medical, light industry, petroleum, paper, chemical, electric power and other professional equipment and other industrial automatic control system.

Mounting instructions

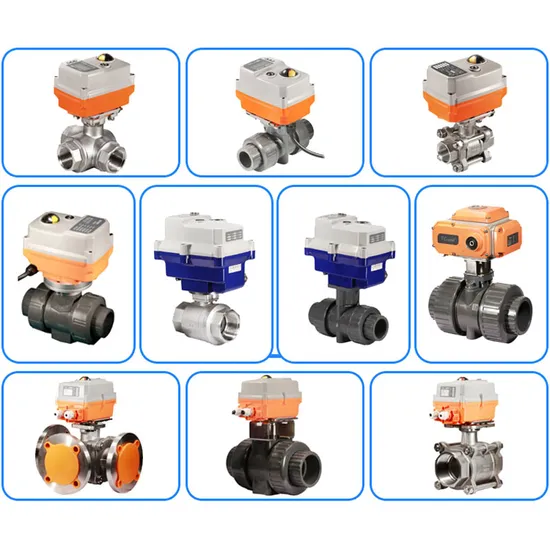

Product display
In the automatic control system, the electric ball valve can be controlled by PLC(or other microcontroller) to adjust or switch
the fluid medium in the process pipeline. It can control the flow rate, pressure,temperature and liquid level of the fluid medium
quickly and automatically, which greatly improves the integration and intelligence of the system. The complex process control
which is not convenient for manual participation can be accurately completed.
FAQ Q:Can you supply pump qualified with ANSI and ASME standard?
A:Yes, our valve compliant with ISO standard.
Q:How to customize valve with actuator ?
A:Customers could send us application data, we will select suitable valve and actuator types, or client could send us drawings, We are well in OEM and ODM.
Q:How can I pay for my items? What is the payment you can provide?
A:Usually by T/T, 30% down payment once PI confirmed, the balance will be paid after inspection and before shipment.
Q:How long is warranty?
A:1 year for main construction warranty.
Q:How long is production lead time?
A:Normally 15 working days. If client need urgently, we have a huge spare parts stock, we could finish assembly and testing in 7 days.
Q:What is the shipping terms you can provide?
A:Depnends on customer's requirements, we can provide different transportantin terms, such as EXW, FOB, CIF.
Q:Who is in charge of after-sales?
A:SUNPACE has professional after sales service team, we will follow up the client's comments and suggest them good solutions. Solve client's problems and keeping the clients profit.
Q:Who is in charge of maintenance?
A:Local agent or calling our office. If valves and actuator running has any problem on site, it will solve the problem within 5 hours.
