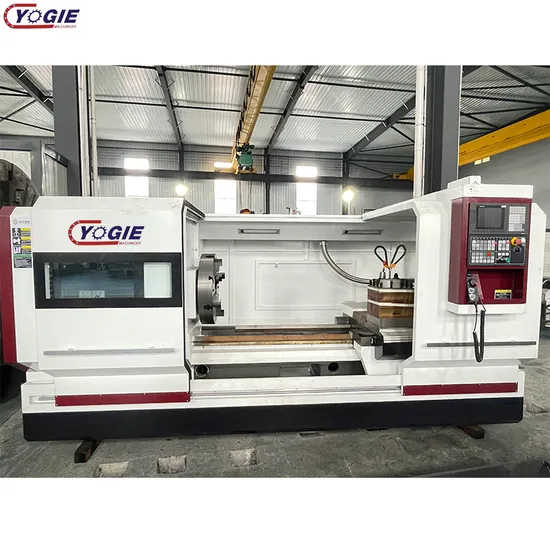

Ck6180-1500 Fanuc System CNC Turning Milling Machine High Accuracy Automatic CNC Lathe

US$32,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
CK-6180
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Spindle Bore(mm)
104
Spindle Motor Power(Kw)
11
No. of Spindles
Single
Number of Axes
3
Travel (X Axis)(mm)
420
Travel (Z Axis)(mm)
850
Weight (Kg)
2600
Max. Spindle Speed (r.p.m)
1000rpm/Min
Positioning Accuracy (mm)
0.01
Repeatability (X/Y/Z) (mm)
0.005
Voltage
380V
Max. Swing Diameter (mm)
500
Tailstock Sleeve Diameter
75
Transport Package
Box
Specification
Customized
Trademark
YOGIE
Origin
China, Henan

Product Description



Product Parameters
SPECIFICATION UNIT CKJ6163 CKJ6180(550)
Capacity Swing over bed mm 630 800
Swing over cross slide mm 350 520
Distance between centers mm 1000/1500/2000/3000/4000/5000/6000
Guideway width mm 550 550
Max. load capacity T 3 3
Spindle Spindle bore mm 104 104
Spindle bore taper - Metric φ120/MT5 Metric φ120/MT5
Spindle nose type - C11 C11
Spindle speed steps - VF.3 steps VF.3 steps
Spindle speed range rpm 10-1000 10-1000
Chuck mm φ315 3-jaw manual φ315 3-jaw manual
Turret Turret/tool post - NC turret 4 position NC turret 4 position
Tool shank size mm 32x32 32x32
Feed X axis travel mm 320 420
Z axis travel mm 850/1350/1850/2850/3850/4850/5850
X axis rapid traverse mm/min 4000 4000
Z axis rapid traverse mm/min 6000 6000
Tailstock Tailstock quill diameter mm φ100 φ100
Tailstock quill taper - MT5 MT5
Tailstock quill travel mm 250 250
Motor Main spindle motor kw 11 11
Coolant pump motor kw 0.125 0.125
Dimension Width x Height mm 1750x1850 1850x1900
Length mm 3300/3800/4300/5300/6300/7300/8300
Weight Net weight T 3.7/4.1/4.5/5.3/6.1/6.9/7.7 3.9/4.3/4.7/5.5/6.3/7.1/7.9

Company Profile
1.professional r&d team with 20 years of experience provide the over all solution for machine and processing.
2.Exporting to more than 50 countries worldwide
3.We own ISO certificate and SGS certification to prove our quality.
Henan Front Intelligent Equipment Co., LTD .
Henan FRT Group (Henan Front Intelligent Equipment Co.,Ltd.),its subsidiaries Luoyang Yujie Industry and Trade Co.,Ltd.,and Luoyang E-find Precision Bearing Manufacturing Co.,Ltd.,benefit from Luoyang's heavy-duty manufacturing advantages.Henan FRT Group has eighteen years experience of exploration and active innovation,has developed into a leading science and technology enterprise integrating scientific research and development, production and manufacturing, sales, technical services, and import and export trade.
FRT Group has been in the machinery industry for eighteen years and is committed to the three major fields of mechanical equipment, mechanical parts and precision bearings. The group has a group of experienced mechanical design teams, production and processing teams, assembly teams, and sales teams, and has excellent production equipments and processing technology, excellent testing instruments, complete product quality assurance system and after-sales service, consistently put product quality and users value first, adhere to integrity and long-termism, the group's core values allow customers achieving success is rooted in the hearts of company personnel.
Our Customers


FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
