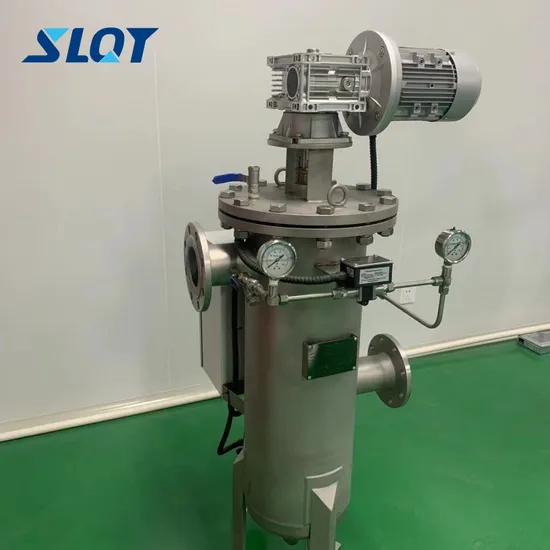

Automatic Self Cleaning Filtration System Brush Filter Self Cleaning Filter

Product Description

Product Description
TSN series Self-cleaning filters is able to auto remove the particles accumulated on filtration surface through high efficient mechanical scraping type. And auto discharge the liquid with high impurity concentration collected inside the chamber through the time difference and pressure difference controlled by PLC. The discharged liquid can be recycled or disposed.
Working Principle
The liquid flows in from the inlet , flows through the filter element and then flows out from the outlet . Impurities are trapped on the inner surface of the filter element. When impurities trapped on the surface of the filter element accumulate to a certain amount, the cleaning procedure is initiated by a timer setting or triggered by a differential pressure sensor. The speed reducer or cylinder drives the scraper blades attached to the surface of the filter element to rotate and scrap off the impurities. These impurities fall into the bottom of the filter. Drain valve at the bottom of the filter shall be opened regularly to drain out the high concentration liquid for recycling.the waste liquid can be reclaimed if necessary.Details photos
Product Parameters
Sub-seriesFilter Area(cm2)Volume(L)Applicapable LiquidFiltration DegreeStandard Design PressureDesign TemperatureClean Differential PressureDifferential Pressure InstrumentGear MotorInlet and Outlet StandardFilter Element TypeHousing Wet Part MaterialScraping Blade MaterialHousing Seal MaterialDischarging ValveSupply Facility Requirement

TSN20 TSN41 TAN71

2070 4140 7140

35 53 175

water and viscous liquids(<800,000cps), impurity<1000ppm

50-3000μm

1.0mPa, high design pressure available

0-200ºC( depend on the seal material)

0.05mPa

Differential pressure tansmitter(DPT)/ Differential Pressure Switch(DPS)

180W, three phase, 380V, protection class IP55, worm reduction gear motor

Flange, HG20592-2009(standard), HG20615-2009(ANSI B16.5 Compatible)

V-SLOT slotted metal filter element, 316L material

304/316L/CS

304/316L

NBR/VITON(FKM)

Pneumatic ball valve, protection class IP65

380V AC, 0.4-0.6mPa clean and dry compressed air

Product Advantage
-Fully automatic operation, 24-hour continuous on-line filtration;
-Automatically discharge waste liquids containing high concentration impurities that can be recycled to reduce the loss of high value materials;
-Closed filtration to prevent the leakage of hazardous materials and ensure the work safety and employee health;
-Stainless steel sheet scraper and stainless steel brush scraper are employed to offer great scraping effect, which significantly improves its impurity removal capacity and avoids crushing impurities;
-Backwash function can be added to help cleaning filter elements;
-PLC-based control system is adopted to control scraping and draining time.Product Application
Applicable Liquid Types: wax, coal oil, monomer, polymer, citric acid, fermented broth, cosmetics, silicon solution, soap, sorbitol, steriodsugar, wet end additives, adhesives, inks, lubricating oils, coatings, resin, rubber, ethanol, miscella, edible oil, juice, diesel, etc.
1. Coatings Filtration
2. Miscella Filtration
3.Fermatation Broth Filtration
4. Water Treatment Filtration
For chocolate slurry production For viscous resin production For paper mill production
Packaging & Shipping
Company Profile
Hebei SLOT Filter Technology Co., Ltd. is a comprehensive enterprise deeply engaged in the field of industrial precision filtration and self-cleaning filtration. With over a decade of industry experience, the company possesses outstanding design and R&D capabilities. Leveraging advanced filtration technology and high-quality product resources, we provide customers with comprehensive, one-stop filtration solutions.
SLOT has obtained ISO9001 quality management system certification and achieved certification from SGS ,strictly adheres to international standards, industry-specific regulations, and customized client requirements in product design and manufacturing. We are committed to developing high-performance, high-quality filtration equipment and precision filtration components.
SLOT automatic self cleaning filter system are widely applied in various industries, including petrochemicals, fine chemicals, energy and power, water treatment, automotive manufacturing, food and beverage, and metal processing. We have established long-term, stable partnerships with numerous well-known industrial enterprises both domestically and internationally.
With exceptional product filter performance, advanced manufacturing capabilities, and professional services, SLOT has earned widespread recognition. If you have higher requirements for filter system performance, quality, safety, and service, SLOT is your trusted long-term partner.
Workshop &Production
Quality Management
FAQ
1. Who are we?
We are based in Hebei, China, start from 2014,sell to North America(40.00%),Western Europe(30.00%), South Asia (10.00%),Africa(10.00%), Mid East(10.00%). There are total about 11-50 people in our office.2. How can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.What can you buy from us?Johnson Screen,Bridge Slotted Well Screens,Sand Control Well Screens, Gravel pre-pack Screen,Pipe-based screen,Perforated Pipe,API/5CT Casing and Tubing.4. Why should you buy from us not from other suppliers?1. Support OEM & ODM
2. We can help customers design drawings.
3. We have own professional research and development group.5. What services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken :English, Chinese, Spanish, Japanese ,Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
If any interesting to be our agent in your local market, feel free to contact with me.

---
