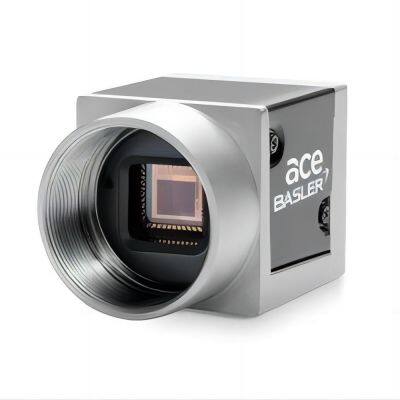

Basler ace acA2500-60um

Product Description

Product Description
The Basler acA2500-60um USB 3.0 camera with the ON Semiconductor PYTHON 5000 CMOS sensor delivers 60 frames per second at 5 MP resolution.
General Information
Order NumberProduct FamilyProduct LineCamera Category

107257

ace U

ace U

Area Scan Camera

Sensor
Sensor VendorSensorShutterSensor FormatSensor DiagonalSensor TypeSensor SizeResolution (H x V)ResolutionPixel Size (H x V)Frame rateMono/ColorSpectrum

onsemi

PYTHON 5000

Global Shutter

1"

15.86 mm

CMOS

12.44 mm × 9.83 mm

2590 px x 2048 px

5 MP

4.8 μm x 4.8 μm

60 fps

Mono

Visible

EMVA Data
Quantum Efficiency (typical/minimal)Dark Noise (typical/maximal)Saturation Capacity (typical/minimal)Dynamic Range (typical/minimal)Signal-to-Noise Ratio (typical/minimal)

55 % (typical)

11.4 e¯ (typical)

7.9 ke¯ (typical)

56.8 dB (typical)

39 dB (typical)

Camera Data
InterfacePixel Bit DepthExposure ControlDigital InputPower SupplyPower Requirements (typical)

USB 3.0

10 bits

hardware trigger programmable via the camera API

1

Via USB 3.0 interface

3.5 W

Housing
Housing TypeHousing Size (L x W x H)WeightLens MountOperating Temperature

Box

29.3 mm x 29 mm x 29 mm

80 g

C-mount

0 °C - 50 °C

Manufacturer
Basler
ConformityCE
EAC
FCC
GenICam
IP30
KC
RoHS
UL
USB3 Vision
DocumentationMore specifications can be found in the Basler Product Documentation.

---
