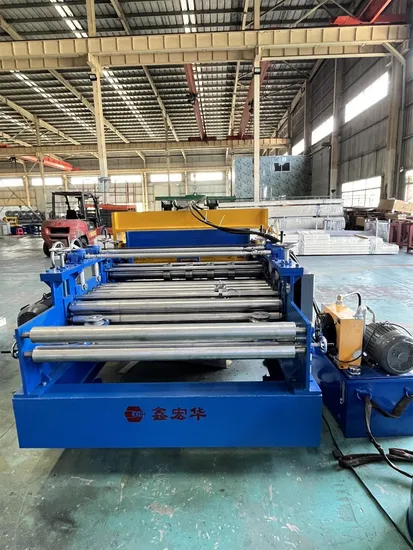

Metal Flattening & Cutting Machine Roll Forming Machine (FCS2.0-1300)

Product Description

Metal flattening(straightening) machine with slitter and cutting device:
Main Accessories:
(1)Flattening Device;
(2)Slitting Device;
(3)Cutting Device;
(4)Hydraulic Motor Device;

Weight	3500KGS
Dimension	2200*2250*1600mm

Main Technic Data:
Dimension: 2200*2250*1600mm
Weight: 3500KGS
Motor Power: 7.5KW;
Working Speed: 10-15m/min;
Max. Steel Thickness: 2.0mm, 2.5mm, 3.0mm;
Max. Steel Width; 1300mm, 1500mm;
Usage: Flattening, slitting and cutting the steel coils
Feature:
A. Adopts flattening setting and cutting blade, easy and convenient to operate;
B. Suitable to flatten and cut the colored prepainted sheets, galvanized sheets, Al-Mg-Mn alloy building coils. etc.
Q&A
Q:Are you a trading company or manufacture ?
A:We are a factory.
Q:Do you provide samples ? Is it free or extra ?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable. We could offer the sample for free charge.
Q:Where is your factory located?
A:Our factory is located in Xiamen City, Fujian Province, China. You are warmly welcome to visit us !
Q:Can you make the machine according to my design or prototype?
A:Yes. We have an professional designer for working out the most suitable design and production plan for the machine that you are going to book with us.
Q:How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference.
2) You are welcome to visit us and test machine in our factory.
Q:Do you provide installing and training overseas?
A:Overseas machine install and worker training services are optional.
Q:How is your after sales support?
A:We provide technical support on line as well as overseas services by skillful technicians.
Guarantee period:
Within one year since the date of finishing commissioning

---
