China Factory Customize Concrete Mixer Truck 3ton-25ton Bulk Cement Mixing Truck

Product Description

Product Description

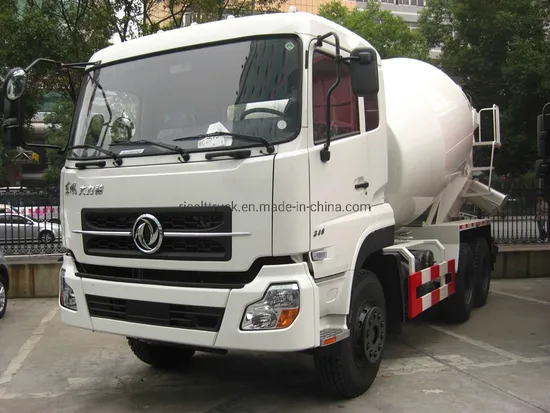

China Factory customize concrete mixer truck 3ton-25ton bulk cement mixing truck
Product Parameters

SPECIFICATIONS
Overall Dimension	10300×2500×3300(mm)
Gross Weight	25000 (kg)
Tare Weight	10505(kg)
Payload	14365 (kg)
Wheelbase	4350+1300 (mm)
Tire Size	10.00R20
Max Speed	90(km/h)
Transmission	8 speed, manual
Axle Capacity	5/10/10
Other Specifications
Engine	YC6A240-50
Power	240 hp
Displacement	7520 mm
Emission	EURO V
Tank volume	8(m³)

The Assembly
The tank has a volume of 8 cubic meters and a round tank. The tank is made of Q235 high-quality carbon steel, and the advanced edging machine one-time molding technology ensures the accuracy and beauty of the tank. The large-scale splicing automatic welding machine is used for welding, and the head adopts the advanced arc butt welding technology. The thickness of the tank body is 8 mm, and the head is 10 mm (one-off die casting process is adopted).
Certifications
Company Profile
Packaging & Shipping
After Sales Service
After-sale Service Team.
We have our own service center in Shiyan city.Hubei yuqiang Commercial truck center-Brother Company. And a professional Commercial truck technology maintain team.
1. Professional after-sales technical service team provides maintenance guidance online 24h. Email, WhatsApp or call, ZOOM, Skype and so on while damage occurs.
2. Give away USD 1,000-5,000 worth of vulnerable parts according to the order amount.

---
