10 Tons Home Use LPG Gas Tank Skid Station

Product Description

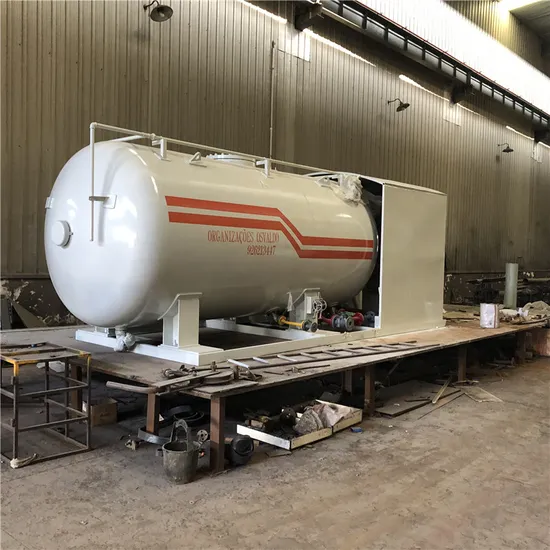

10 tons home use lpg gas tank skid station

Product	10m3 LPG storage tank
Normal Diameter	1600mm
Designed Pressure	1.77MPa
Max pressure	1.61Mpa
Whole Dimension	7260x1800x2310
Tank Dimension	6866x1800x2100mm
Side thickness	10mm
Bottom thickness	10mm
Curb weight:	3750kg
Loading weight	4200kg
Total weight	7950kg
Filling factor	0.95
Medium density	420kg/m3
Designed Temperature	50ºC
Tank material	Q345R , 16 Mnlll, Q370R
Corrosion	1mm
Heating testing	PWHT(bulk heat treatment)
Water Testing	2.22 Mpa
Hermetic testing	1.77 Mpa
Safety spare parts for LPG tank	1, Safety Valve 2, Liquid gage 3, Pressure gage 4, Temperature gage
Safety spare parts for gas pipeline system	1, Pump shock tube 2, Pipe flange 3, Pump outlet check valve 4, Safe backflow 5, Piping safety valves
Standard configuration	1, 10m3 LPG storage tank 2, Pump 3, Weighting meter machine
Manufacturer Standard	GB150 Steel pressure vessel, pressure vessel safety technology to monitor the procedures

Component
A complete LPG filling station should include the following parts: tank area (storage tank, residual liquid irrigation, overpass, protective wall, etc.), compressor room (compressor and related motor), steam tank loading and unloading station (source source loading and unloading) Place), transformer and distribution room (transformation and distribution equipment), gas island (gas filling machine, etc.), lightning protection tower, fire protection facilities, office and living building, etc.
ingredient
LPG (liquefied petroleum gas) is a mixture of propane and butane, usually accompanied by small amounts of propylene and butene. A strong odorant, ethanethiol, is added to the liquefied petroleum gas so that the leakage of LPG can be easily detected. Liquefied petroleum gas is produced during the extraction of crude oil or from the oil or natural gas extraction process. Liquefied petroleum gas (LPG) is often mistaken for propane. In fact, LPG is a mixture of oil and natural gas under appropriate pressure and exists in a liquid state at room temperature. In the United States and Canada, the mixing of these two substances is generally considered to consist primarily of propane, while in many European countries the propane content in LPG is only 50% or less.
LPG is gaseous at normal temperature, can be liquefied under pressure or low temperature, and is non-toxic, but at a higher concentration, it has a paralyzing effect on the central nervous system of the human body, causing suffocation and death.
The octane number of liquefied petroleum gas is around 110, while the gasoline is around 90-95, which is higher than 5%-10% of gasoline. Therefore, liquefied petroleum gas has higher knock resistance than gasoline.
Our Factory
Products Display
Cooperative Partner
Qualification Certificate
Packaging & Shipping
Cooperative Brand
FAQ
1.You are factory or trading Company?
Yes, we are oversea sales department of Chengli automobile. And you are always welcomed to visit our factory.
2.Could your company modify the standard product depends on my request?
Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demand.
4. Could you provide certification that we need?
We can provide various certifications associate with trailer and truck. Such as DOT, ADR, SASO and so on.

5. How long could we receive our goods?
It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.
6. How about the after-sale service?
We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in person
