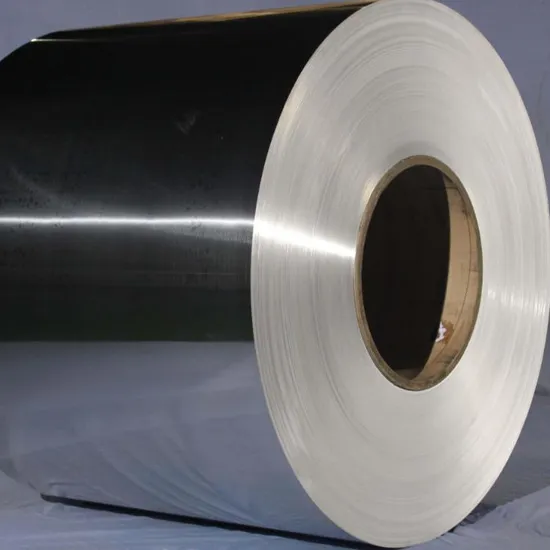

Aluminum coil is a metal product for flying shear after calendering and stretch-bending.
Aluminum coil is widely used in electronics, packaging, construction, machinery and so on.
| 1)1000 Series Alloy (Generally called commercial pure aluminum,Al>99.0%) |
| Purity | 1050 1050A 1060 1070 1100 |
| Temper | O/H111 H112 H12/H22/H32 H14/H24/H34 H16/H26/H36 H18/H28/H38 H114/H194, etc. |
| Specification | Thickness≤30mm; Width≤2600mm; Length≤16000mm OR Coil (C) |
| Application | Lid Stock, Industrial Device, Storage, All Kinds of Containers, etc. |
| Feature | Lid Shigh conductivity, good corrosion resistant performance, high latent heatof melting, high-reflectance, well welding property, low strength, and notsuitable for heat treatments. |
| 2)3000 Series Alloy (Generally called Al-Mn Alloy, Mn is used as main alloy element) |
| Alloy | 3003 3004 3005 3102 3105 |
| Temper | O/H111 H112 H12/H22/H32 H14/H24/H34 H16/H26/H36 H18/H28/H38 H114/H194, etc. |
| Specification | Thickness≤30mm; Width≤2200mm Length≤12000mm OR Coil (C) |
| Application | Decoration, heat-sink device, external walls, storage, sheets for construction, etc. |
| Feature | Good rust resistance, not suitable for heat treatments, good corrosion resistantperformance, well welding property, good plasticity, low strength but suitablefor cold working hardening |
| 3)5000 Series Alloy (Generally called Al-Mg Alloy, the Mg is used as main alloy element) |
| Alloy | 5005 5052 5083 5086 5182 5754 5154 5454 5A05 5A06 |
| Temper | O/H111 H112 H116/H321 H12/H22/H32 H14/H24/H34H16/H26/H36 H18/H28/H38 H114/H194, etc. |
| Specification | Thickness≤170mm; Width≤2200mm ; Length≤12000mm |
| Application | Marine Grade Plate, Ring-Pull Can End Stock, Ring-Pull Stock, AutomobileBody Sheets, Automobile Inside Board, The Protective Cover On Engine. |
| Feature | All the advantages of normal aluminium alloy, high tensile strength & yield strength,good corrosion resistant performance, well welding property, well fatigue strength,and suitable for anodic oxidation. |
| 4)6000 Series Alloy (Generally called Al-Mg-Si Alloy, the Mg and Si are used as main alloy elements ) |
| Alloy | 6061 6063 6082 |
| Temper | O F, etc. |
| Specification | Thickness≤170mm; Width≤2200mm ; Length≤12000mm |
| Application | Automotive, Aluminium For Aviation, Industrial Mould, Mechanical Components,Transport Ship, Semiconductor Equipments, etc |
| Feature | Good corrosion resistant performance, well welding property, good oxidability,easy to spray-finishing, well oxidation coloring, good machinability. |
| Alloy Grade | Application Field |
| 1xxx | 1050 | Insulation food industry, decoration, lamp, traffic signs etc. |
| 1060 | Fan blade. Lamps and lanterns. Capaoitor shell, Auto parts, Welding parts etc. |
| 1070 | Capacitor. Rear panel of vehicle refrigerator, charging point. heat sink etc. |
| 1100 | Cooker, building material, printing, heat exchanger. bottle cap etc. |
| 2xxx | 2A12
2024 | Aviation aluminum materials are mainly used in aircraft structures (such as skins),aerospace, weapons, engines, pistons, automobile bodies, ship hulls and stressed components |
| 3xxx | 3003
3004 | Aluminum curtain wall panel, aluminum Ceiling, Electric cooker bottom, TV LCD backboard. storage tank, curtain wall, building construction panel heat sink.billboard |
3005
3105 | Industrial floor. air conditioning. refrigerators radiators. Make-up board. Prefabricated house etc. |
| 4xxx | 4343 | Mainly used for welding materials. etc. |
| 5xxx | 5052 | Marine and transportation material. railway carriage's inner and outer cabinet. oil and chemical industry storage device, equipment and medical device panel etc. |
| 5005 | Marine applications. bodies of boats. buses, trucks and trailer. Curtain wall panel. |
| 5066 | Ship board. deck, bottom and edge panel etc. |
| 5083 | Tanker, oil storage tank, drilling platform, ship board. deck, bottom, welded parts and edge panel, railway carriage 's board. automotive and aircraft panel. coling device and automotive molding etc. |
| 5182 |
| 5454 |
| 5754 | Tanker body, car body panel. marine facilities, pressure container, transportation etc. |
| 6xxx | 6061 | Railway inside and outside parts. board and bed plate. Electronics. Electrical Appliances. Consumer Durables. |
| 6083 | Industry molding |
| 6082 | Highly stressed applications includes Roofing construction, transportation.and marine as vell as mould. |
| 6063 | Auto parts, architectural fabrication. window and door frames,aluminum furniture electronic components as well as various consumer durable products. |
| 7xxx | 7005 | Truss, rod/bar and the container in transportation vehicles; Large-sized hest exchangers. |
| 7050 | Forming (bottle) molds, ultrasonic plastic welding molds, golf balls, shoe molds,paper molding, foam molding. lost wax molds. templates. fixtures,machinery and equipment. |
| 7075 | Aerospace industry. military industry, electronics. etc. |
| 8xxx | 8011 | Mainly used to make bottle caps. but also can be used in radiators. most applications are aluminum foil. |
FAQQ1:What product information do I need to provide?A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.Q2:Can you send samples?A:Of course, We can provide you samples for free, you just need to bear the courier costs. Q3:How long does your delivery time take?A:In general, our delivery time is within 15-20 days, and may be delayed if the demand is extremely large or special circumstances occur. Q4: Does the product have quality inspection before loading?A: Of course, all our products have undergone strict quality inspection before packing, and unqualified products will be eliminated.Q5:What's your payment term?A:Usually we do T/T and L/C or combined.Q6:Can you provide the product catalog?A:Yes we can send you a word/PDF document of our catalog with attachment in Email.
