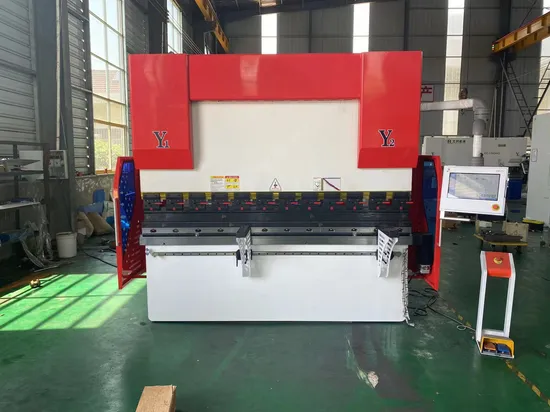

CNC Latest Semi-Automatic Sink Forming Bending Machine

Product Description

Product Description metal sheet bending machine for process the base of handmade sink.We can provide supporting molds 1. Hydraulic Valve: Haimen Xinli-XINLI 2. Oil cylinder: seal Japan NOK, using rolling technology, the thinnest surface coating can also reach 0.12 , with high wear resistance.
3. Each component of the frame adopts steel plate welded structure, after tempering treatment and vibration aging treatment, eliminate the deformation caused by welding stress and processing stress, and ensure the accuracy and durability of the machine tool.
4. The fuselage adopts an integral welded structure for easy transportation. The whole processing of large floor boring machine can ensure the accuracy of the machine tool.
5. The fuselage, slider and other important components are analyzed by ANSYS finite element analysis software to ensure the reliability of the machine tool.
6. The cylinders at both ends are placed on both columns to drive the slide directly; so the machine is simple and rigid.
The slider is synchronized by torsion shaft force, and can withstand certain partial load; the slider adopts frame structure, strong rigidity,
High strength and small deformation.
7. The upper mold is equipped with the upper mold inclined iron accuracy compensation mechanism, which can make the workpiece achieve high bending accuracy
8. Rear gear and slider travel values are displayed on the display screen
9. This hydraulic system can realize the rapid decline of the slide, slow decline, advance speed bending, rapid return and emergency stop of the slide in the upward and downward process.
10. Electrical control is centralized and reliable, specifically as follows:
The power facilities are located in the fuselage, which are controlled and realized through the touch screen of the control panel.
Equipped with a foot switch, which can be operated through its direct bending action, convenient and quick.
Overload and short circuit of the motor are protected by the air switch.
11. Die material: 42 CrMo
Detailed Photos

Product Parameters

Name	Parametervalues	Unit
NominalPressure	630	KN
FoldableBoard Width	2500	mm
Slide Stroke	120	mm
Adjusting the distanceoftheslider	100	mm
Die-set Height	600	mm
Column Spacing	1975	mm
ThroatDepth	260	mm
Workbench Width	160	mm
WorkbenchHeight	800	mm
Approaching Speed	50	mm/S
Working Speed	30	mm/S
Return Speed	50	mm/S
Fuel Tank Capacity	300	L
Power	5.5	KW

Our Advantages Foshan is a famous metal manufacturing city with mature and advanced machine technology and reasonable prices,We focus on providing kitchen supplies production solutions, including providing production machines, plant layout, production technology output, for you to save worry, labor and money, we wholeheartedly escort your career success.

After Sales Service Sufficient spare parts inventory: provide users with complete parts inventory of parts, any parts, vulnerable parts can be replaced in time, to escort the daily production of users.
Provide 7*24 hours of after-sales online service, maximize the guarantee of users' daily production plan, after-sales problems worry worry.
Lifetime service: establish the unique coded user file of the equipment, track and record the applicable details of the equipment, and provide lifelong maintenance service for cooperative users.

---
