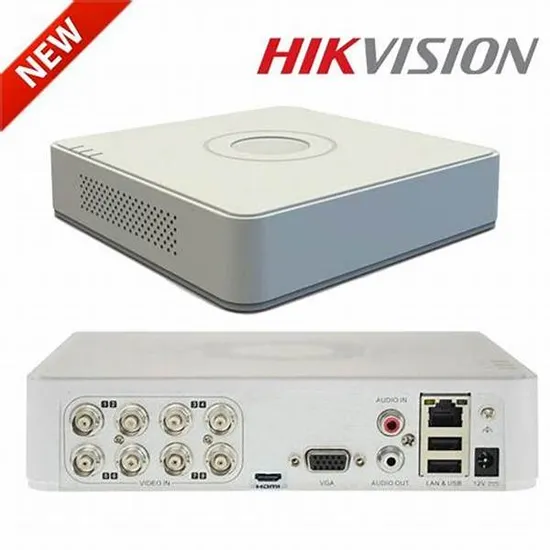

Hikvision 8-CH 1080P Lite Mini 1u H. 265 DVR Audio Via Coaxial Cable

Product Description

Overview DS-7108HGHI-K1 TURBO HD DVR Key Feature
>Deep learning based human and vehicle targets classification of Motion Detection 2.0
> H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
> HDTVI/AHD/CVI/CVBS/IP video input
> Audio via coaxial cable
> Up to 10-ch IP camera inputs (up to 5 MP)
> Up to 1080p Lite@15 fps encoding capabilit
> Max. 1200 m for 720p HDTVI signal
Specifications

Motion Detection 2.0
Human/Vehicle Analysis								Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Recording
Video Compression								H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution								For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF For SD stream access: WD1/4CIF/VGA/CIF
Frame Rate								Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
Video Bitrate								32 Kbps to 4 Mbps
Stream Type								Video, Video & Audio
Audio Compression								G.711u
Audio Bitrate								64 Kbps
Video and Audio
IP Video Input								2-ch (up to 10-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input								8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input								1080p25, 1080p30, 720p25, 720p30
AHD Input								1080p25, 1080p30, 720p25, 720p30
HDCVI Input								1080p25, 1080p30, 720p25, 720p30
CVBS Input								Support
HDMI Output								1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzSupport
VGA Output								1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output Mode								HDMI/VGA simultaneous output
Audio Input								1-ch, RCA (Linear, 1 KΩ)
Audio Output								1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio								Reuse the first audio input
Synchronous playback								8-ch
Network
Total Bandwidth								72 Mbps
Network Protocol								TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS
Remote Connection								64
Network Interface								1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA								1 SATA interface
Capacity								Up to 4 TB capacity for each disk
USB Interface								Rear panel: 2 × USB 2.0
Alarm In/Out								N/A
General
Power Supply								12 VDC, 1.5 A
Consumption								≤ 17 W (without HDD)
Working Temperature								-10 °C to 55 °C (14 °F to +31 °F)
Working Humidity								10% to 90%
Dimension (W × D × H)								200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
Weight								≤ 1 kg (without HDD, 2.2 lb.)

Packaging & Shipping
FAQ Q: Why choose us?
A: We directly cooperate with the world's top manufacturers Dahua, Hikvision, and Imou, you will get the most favorable prices and the best technical support.
Q: How to confirm whether the product is Dahua's genuine English version?
A: You can download software from the official website ofDahua.Only Dahua's genuine product is compatible with the software. And we promise all of our products are genuine Dahua products.
Q: When will you ship my order?
A: For those in stock, we will ship orders within 1-5working days once we get a confirmation for payment
For those out of stock, delivery time is around one month
Q: Can l install the IP camera by myself?
A: Of course the camera is flexible and installed. And there is a user manual in the box.
Q: What's your payment method?
A: We accept T/TWesternUnion, MoneyGram, and Paypal
Q: Do you support drop shipping?
A: Yes, your drop shipping is available
Q: How about a warranty?
A: Three years warranty and you can contact us for any technical problems. Our technicians will support you in 24 hours.

---
