Basic Info.
Number of Stator
Two-Phase
Excitation Mode
PM-Permanent Magnet
Operate Mode
Three Phase Double Beat
15kg Servo Motor
15kg Servo Motor
for Robot Arduin
for Robot Arduin
Robotics & Education Fs90
Robotics & Education Fs90
Specification
40.8x20.1x38
Production Capacity
50000/Year
Product Description

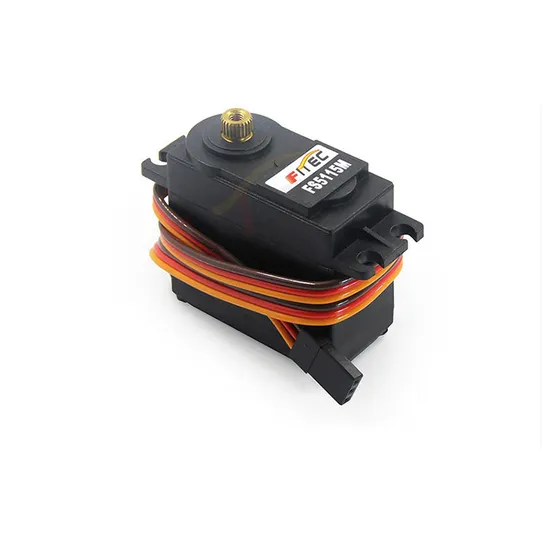

SKU:FS5115M
Dimensions:40.0 × 20.0 × 40.5 mm
Weight:59 g
Operating Speed :0.18sec/60degree (4.8V)0.16sec/60degree (6V)
Stall Torque :14kg.cm/194.8oz.in(4.8V)15kg.cm/208.7oz.in(6V)
Operating Voltage :4.8V~7.4V
Control System :Digital
Direction :CCW
Operating Angle :180degree
Required Pulse :500~2500us
Bearing Type :2BB
Gear Type :Metal
Motor Type :Carbon
Connector Wire Length :30 cm
FS5115M is low price high quality robot servo.
This servo is used in robots or where standard servos are used.
This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering approximately 2A for each servo.
This servo also have different applications for DIY robot.
| product | brand new |
| colour | As shown in the figure |
FAQ:
1,How about the quality of your product? Before shipping out, all goods have been double verified by FUT quality inspection center ,Our test engineer will check for quality, including check the basic function of the hardware and software, the appearance, the packing, the necessary accessories and power adapter plug standard.
Normally, 1-5 workdays after payment; Special requirement orders, delivery time is negotiable. Rich stock can satisfy urgent requirement.And support small orders. 3,What are the warranty and after-sale of the product?
If the products can't work after receiving it,we will replace your new product immediately and make the judgement for the issue. If the products don't meet my demand after I received it,you can return back to us, we will refund your full payment. 1-2 years warranty according to different products 1-3 months to replace new items for free. 4,Can you OEM|ODM?
Of course, we can. FUT have professional R & D Center,we can develop and manufacture according to customer's requirements. We can make your package please Such as printing your logo. 5,Are you a manufacturer?
Yes, we manufacture different controller board, Exponsion Shiled Board, sensor Module for Arduino, 3Dprinter Controller Board,Raspberry Pi,Banana pi. Our factory and office are in Shenzhen, welcome you to visit at
>>
