Precision 3-Axis CNC Torno Slant Bed CNC Turning Lathe Machine

Product Description

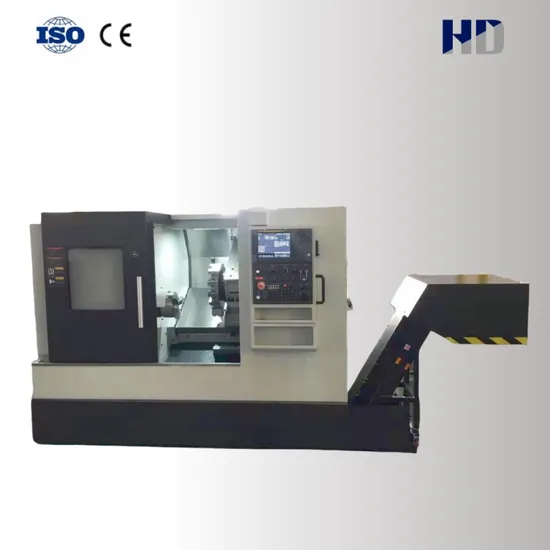

Product Picture
Specification Parameter

Items (FANUC 0I-TF)	Unit	EL200(L)	EL280(L)	EL200Y(L)	EL280Y(L)
Max. Swing over bed diameter	mm	Φ 650	Φ 650	Φ 650	Φ 650
Max.swing over saddle	mm	Φ330	Φ330	Φ330	Φ330
Max. Turning diameter	mm	Φ450	Φ450	Φ350	Φ350
Max. Turning length	mm	570(720)	540(690)	500(650)	470(620)
Spindle
Spindle motor power ( continues / 30min )	kw	11/15	11/15	11/15	11/15
Spindle max. speed	rpm	4200	3500	4200	3500
Spindle nose	/	A2-6	A2-8	A2-6	A2-8
Through hole dia.	mm	Φ76	Φ91	Φ76	Φ91
Bar capacity	mm	Φ 65	Φ 80	Φ 65	Φ 80
Hydraulic chuck	Inch	8"	10"	8"	10"
Feed axis
X/Z/Y axis max. travel	mm	250 / 580(730)	250 / 580(730)	250 / 543(690)/100	250 / 543(690)/100
X/Z/Y axis motor power	kw	1.8 / 1.8	1.8 / 1.8	3.0 / 1.8 / 3.0	3.0 / 1.8 / 3.0
X/Z/Y axis rapid speed	m/min	30/30	30/30	30/30/10	30/30/10
X/Z guide type	/	Linear rail	Linear rail	Linear rail	Linear rail
C axis (option)
Min. Spindle positioning accuracy		--	--	± 0.001 °	± 0.001 °
Dynamic accuracy		--	--	± 0.002 °	± 0.002 °
Turret type
Turret capacity		12	12	12	12
Square tools	mm	25	25	25	25
Circle tools	mm	Φ40	Φ40	Φ40	Φ40
Power turret motor	kw	--	--	3.0	3.0
Power turret		--	--	BMT55-ER32	BMT55-ER32
Power tool speed	rpm	--	--	4000	4000
Tailstock
Mandrel diameter	mm	Φ70	Φ70	Φ70	Φ70
Mandrel travel	mm	150	150	150	150
Tailstock body travel	mm	460(610)	460(610)	460(610)	460(610)
Taper hole taper		MT#5	MT#5	MT#5	MT#5
Mandrel/tailstock control programmable		YES/NO	YES/NO	YES/NO	YES/NO
Specification
Positioning accuracy ( X/Z)	mm	±0.005	±0.005	±0.005	±0.005
Repeatability ( X/Z)	mm	±0.003	±0.003	±0.003	±0.003
CNC control system		FANUC	FANUC	FANUC	FANUC
Chip conveyor		Side type	Side type	Side type	Side type
Machine dimension(L x W x H)		2519x 1750 x 1695 mm	2519x 1750 x 1695 mm	3211x 1750 x 2207 mm	3211x 1750 x 2207 mm
Machine net weight	kg	3700/4200	3900/4200	4500/5000	4700/5200

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Exhibition Photos
Certificate
Packing&Shipping
FAQ

---
