Powder Rotary Mixer Powder Double Cone Mixer

Product Description

Plastic Powder and Granule Double Cone Mixer, Mixing Machine, Mixing Equipment Product Description Description

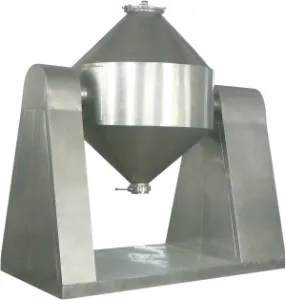

HJ double cone mixer and V type mixer machine are functionally similar. Double cone blender transports the powder or granular materials to the double cone container by vacuum or artificial means. With the constant rotation of the container, materials in it make complex motion to achieve uniform mixing.

Application
Double cone mixer is suitable for powder and granular materials mixing in pharmaceutical, chemical, food, dyes and building material industries.

Features
1. Double cone blender is energy saving, simple in operation, low labor intensity and high work efficiency.
2. The barrel of double cone mixer is made up of stainless materials. It is beautifully shaped and both inside and outside of barrel is polished.
3. An inside stirring machine can add to double cone blender, which makes it better break easy-caking materials and further strengthens the mixing effect.
4. Spray devices can be added to the double cone mixer to color the materials and increase flavors.
5. Double cone blender is remarkably effective when it comes to powder or granules with good mobility.

Parameters of Double Cone Mixer

Model	W-300	W-500	W-1000	W-1500	W-2500	W-4000	W-6000	W-8000
Production Capacity (kg/batch)	150	250	500	750	1250	2000	3000	4000
Overall Volume (m3)	0.3	0.5	1	1.5	2.5	4	6	8
Mixing Time (min)	4-8	4-8	6-12	6-12	6-12	6-15	6-15	6-15
Motor Power (Kw)	1.1	2.2	3	4	5.5	7.5	11	15
Cylinder Speed (rolling/min)	15	15	12	12	12	10	10	10
Overall Dimensions (L × W × H)	1680 × 650 × 1600	2080 × 750 × 1900	2150 × 850 × 2100	2300 × 1600 × 3100	2500 × 100 × 2450	2980 × 1580 × 2800	3500 × 1800 × 3000	3980 × 2000 × 3200
Mixer Weight (kg)	310	550	800	950	1650	1880	2350	2680

---
