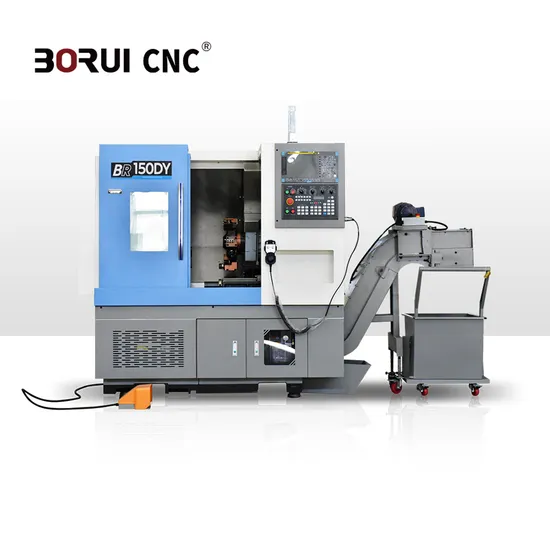

Borui Br-150dy Auto Feed Slant Bed Lathe 30 Degree CNC Slant Bed Lathe for Metal Machine

Product Description

Borui BR-150DY auto feed slant bed lathe 30 degree cnc slant bed lathe for metal machine

Product Description
Features:
1. The series CNC lathe is designed with high strength, rigidity and with advanced machine structure, defense,and security.
2.The machine adopt the high rigidity cast iron, base and lathe bed monolithic structure, high precision through-hole structure, vibration resistance designed and high range spindle motor.
3.The bearings and feeding screw adopt the world famous brand, equipped with multi-position tool post, tools are easily changed and changed fast with high precision.
Application:
Slant Bed cnc Lathe machine is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of
threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace and other industries on the rotary parts for efficient, high-volume, high-precision processing.

Product Parameters

	Item	BR-150L	BR-150LA	BR-150DY	BR-150LADY(A2-6)
Main Parameter	The max.swing diameter over bed	Φ510		Φ510
	Max. machining diameter	Φ250		Φ250
	Max. swing diameter over cross slide	Φ150		Φ150
	Max. processing length	260	245	235	225
Spindle And Chuck	Spindle end type	A2-5(6 ″)	A2-6(8 ″)	A2-5(6 ″)	A2-6(8 ″)
	Spindle motor power	5.5~7.5KW	7.5~11KW	5.5~7.5KW	5.5~7.5KW
	Spindle speed	4500rpm	3500rpm	4500rpm	3500rpm
	Spindle through hole diameter	Φ56	Φ66	Φ56	Φ66
	Through the bar diameter	Φ45	Φ52	Φ45	Φ52
Feed	X/Z axis lead screw specification	3208/3210		3208/3210
	Y axis lead screw specification			2508
	X/Z axis linear guide specifications	35/35		35/35
	Y axis linear guide specifications			25
	X/Z axis limit travel	135/370		135/370
	Y axis limit travel			60(±30)
	X/Z axis motor torque	11N.M/11N.M		11N.M/11N.M
	Y axis motor torque			7 N.M
	X/Z axis connection type	Direct connection		Direct connection
Turret	Turret	SH80-825-280
	Tower station	12T		12T
	Power tower			Y-axis power tower
	Power head specification			BMT40/ER20
	Power head speed			4000rpm
	Power head motor			2.5Kw
	Power head to motor transmission ratio			1∶1
	Turret center height size	80mm
Overall Dimension	Bed type and inclination	Integrated/30°		Integrated/30°
	Machine size(L * W * H)	1430×1025×1380		1430×1025×1470

Details Display

Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
