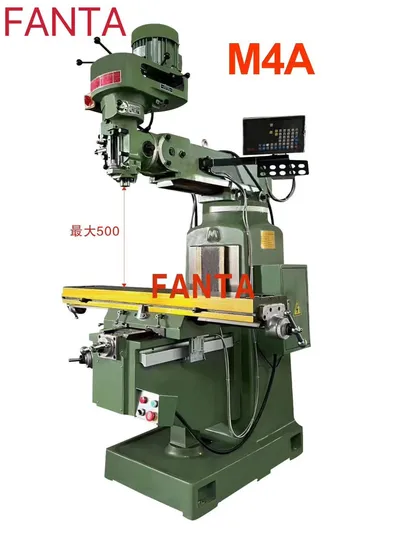

Fanta M4a Turret Milling Machine Spindle to Table Distance 500mm

Product Description

Guangdong Tuoyu CNC Machine tool Co., LTD Guangdong Tuoyu CNC Machine Tool Co., Ltd. was established in 2002, is a professional production of Taiwan turret milling machine and spare parts factory, driven by innovation, innovation is driven by the core needs of customers, more than 20 years we are committed to R & D and manufacturing turret milling machine and CNC lathe function production and sales. Has developed and produced 10 series of more than a variety of products, is currently the domestic product series most complete, variety specifications of one of the manufacturers. The company adheres to the concept of "innovation in inheritance, development in innovation" and implements teamwork. Efficient execution. Dare to take responsibility. Value orientation. People-oriented. The cultural strategy of win-win cooperation gradually moves from concept dissemination to concept penetration, from thought launching to concrete practice, from typical driving to the practice of participation, and innovation will never stop. Sharpen your actions and reach far.
Product introduction
Turret milling machine can also be called rocker arm milling machine, rocker arm milling, universal milling. Turret milling machine compact structure, small size, high flexibility, milling head can turn around 90 degrees, front and back rotation 45 degrees, the rocker arm can not only telescopic, and can be 360 degrees in the horizontal plane rotation, greatly improving the effective working range of the machine tool.
Make up
The body of universal radial milling machine is made of high-grade cast iron, which has high precision and long life after artificial aging treatment. The lifting platform adopts rectangular guide rails with many contact surfaces and rigid feet. After high frequency treatment and fine grinding, the slide is plastinated with excellent motion accuracy and life. Universal radial milling machine spindle is made of chrome-molybdenum alloy, with precision angular contact bearing, after tempering treatment and fine grinding, strong cutting force, high precision.
use
Turret milling machine is a kind of lightweight universal metal cutting machine, with vertical and horizontal milling two functions, can mill the flat, inclined, groove and spline of medium and small parts. Widely used in machining, mold, instrument, instrument and other industries.
Structural characteristics
1. Base, fuselage, workbench, middle slide seat, lifting slide seat and other main components are cast with high strength materials.
And by artificial aging treatment, to ensure the long-term stability of the machine tool.
2, the milling head is equipped with turret milling head, and the main shaft is equipped with manual and micro feeding methods, convenient and accurate processing;
The milling head can be adjusted ±45° in the vertical plane and 360° in the horizontal plane to expand the machining range of the machine.
3. There are three kinds of manual feed, mobile feed and mobile fast feed on the vertical and horizontal table. The mobile feed can obtain 8 different feed speeds.
Can meet different processing requirements; The fast feed allows the workpiece to reach the machining position quickly and shortens the non-machining time.
4, lifting platform Z-lifting can be achieved by manual and maneuvering two ways, and manual and maneuvering are interlocked, eliminating unsafe factors.
5, the table X direction travel up to 800mm, and X, Y, Z three direction guide pair by ultra-audio quenching, precision grinding and scraping treatment,
Improve the accuracy and prolong the service life of the machine.
6. The manual lubrication device can force the longitudinal, horizontal and vertical lead screw and guide rail to lubricate, reduce the wear of the machine tool and ensure the efficient operation of the machine tool;
At the same time, the cooling system changes the size of the coolant flow by adjusting the nozzle to meet different processing needs.
7. The machine tool operating system is suspended on the upper right side of the machine tool through the support arm, which is ergonomic and easy to operate;
The operation panel is designed with figurative symbols, which is simple and intuitive.
8, turret milling machine spindle can be selected R8.NT30\NT40,
9, equipped with improved electrical box and controller, with 110V,220V output socket.
Technical parameter
Table size: 1270x 254mm
Left and right travel :800mm
Front and rear travel :400mm
Up and down stroke :450mm
Spindle motor: 3HP
Spindle taper hole: R8,NT30,NT40
Spindle diameter :85.725mm
Spindle speed: 80-5440rpm(16 speed)
Tilt Angle of end milling head: 90° left -90° right
T-slot: 12.7mm x 3 x 22mm
Extended arm stroke: 600mm
Machine weight: 1200kg
Milling machine maintenance
1. Cleaning: disassemble and clean the scraping skin of each part; Wipe the sliding surface and guide surface, wipe the table and the transverse, lifting screw, wipe the tool and the tool holder.
2, lubrication: keep the oil holes clean and smooth and fill 32# lubricating oil; Fill lubricating oil on each guide rail surface, sliding surface and each screw; Check the oil pot, oil level, and oil to the elevation.
3, tighten: check and tighten the pressure plate and insert screws; Check and tighten table limit screws, tool drive mechanism, three-ball handle, table bracket screws.
4, adjustment: check and adjust the milling head belt, pressure plate and insert tightness is suitable; Check and adjust limit stop and screw clearance.
5, anti-corrosion: remove the rust of each part, protect the paint surface, do not collide; The guideway surface, sliding screw handwheel and other exposed parts prone to rust of deactivated and standby equipment are coated with oil anticorrosion

---
