Best Sale Water Bottle Preform Injection Molding Machine

Product Description

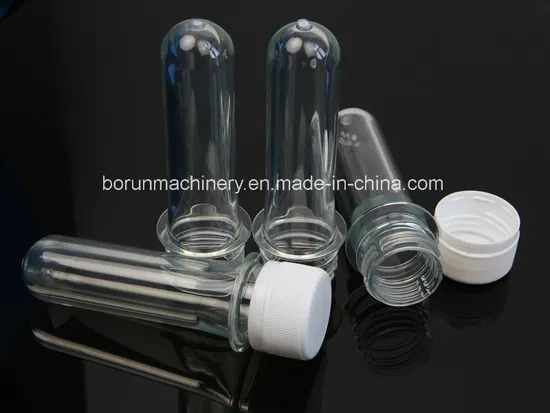

Best Sale Water Bottle Preform Injection Molding Machine

BM series plastic injection molding machine has moving platen featuring box type bridge structure and full-connected rear high-rigidity mold platen. Through finite element analysis, it can prevent deforming of mold platen, resist against fatigue, have high repetition accuracy, distribute mold closing force uniformly, greatly increase mold's service life and reduce the molded parts cost.
Clamping unit:
1. Internally-rolled 5-point double toggle mold clamp structure, greatly increases rigidity and precision of the mold clamp unit.
2. With box type bridge structure, moving platen, and high rigidity continuous rear platen reinforced through finite-element analysis, we guarantee that the mold platens are not deformable and are durable.
3. The tie rods are made of high quality structural alloy steel plated with hard chromium, with high mechanical strength and fatigue strength.

Injection unit:
1. Use of double guide posts and dual-cylinder balance injection device, guarantees that balanced and uniform forces are applied on the screw during injection and moving forward.
2. High quality alloy screw nitride or with chromium plating, and nitride barrels, are protected against corrosion and fatigue, which greatly increase their service life.

Lubricant unit:
1. With use of volumetric electrical lubricator, automatic centralized lubrication and uniform oil distribution in the pipeline, the machines have high lubrication efficiency and long toggle life. Hydraulic unit:
2. Well-known oil pump and control valves in the world are used, to execute accurate controlling over the force, speed and direction of hydraulic mechanism and ensure the accuracy, reliability, stability and durability of the machine.

Model	Clamping force (KN)	Mold thickness (mm)	Tie-bars space (mm)	Heat power (KW)	Oil pump motor power (KW)	Dimension (mm)	Weight (KGS)
BM-1000A	1000	150-400	385x350	7.6	11	4300x1500x1600	3400
BM-1320A	1320	150-420	410x375	8.2	13	4500X1600X1700	3900
BM-1400A	1400	150-420	428X386	8.2	13	4800X1600X1700	4200
BM-1650A	1650	170-440	455X425	8.2	15	5000X1600X1700	5000
BM-1800A	1800	180-470	480X460	11	15	5300X1600X1750	5500
BM-2050A	2050	190-470	490X464	11.6	17	5400X1600X1750	6000
BM-2300A	2300	200-510	510X510	11.6	18.5	5700X1800X2000	6500
BM-2600A	2600	200-550	554X554	15.5	25	6100X1700X1800	8000
BM-3000A	3000	220-600	580X580	15.5	25	6500X1800X1800	9000
BM-3400A	3400	270-650	640X640	17.5	30	6700X2000X1900	10800
BM-3850A	3850	280-680	680X680	17.5	30	7000X2200X2000	11500
BM-4500A	4500	280-710	720X720	20.5	37	7300X2300X2400	13800
BM-4800A	4800	280-750	750X720	23.4	15+25	8300X2200X2200	16300
BM-5200A	5200	290-780	770X740	28.1	18.5+25	8600X2200X2250	20000
BM-5800A	5800	290-810	800X774	28.1	18.5+30	8750X2200X2300	21800
BM-6500A	6500	350-860	860X819	37.1	25+30	9200X2200X2400	26000
BM-7500A	7500	400-960	961X961	40.9	30+37	10700X2300X2700	38000
BM-8500A	8500	400-980	1016X980	42.5	37+37	11000X2400X2750	45000
BM-11000A	11000	500-1150	1230X1105	63	128	14000X2900X4100	63000
BM-13000A	13000	600-1400	1350X1280	85.25	160	13200X3100X3600	76000

Main Parts list:

NO.	Parts Name	Brand	Origin
1	Hydraulic Motor	DAN DUN	Italy-China
2	Hydraulic Oil Pump	HIGH-TECH	Made in Taiwan
3	Proportional Hydraulic Valve	HUAYE	Made in China
4	Transducer	Gefran	Made in Italy
5	Sealing Rings	HALLITE	Made in USA
6	Reversal Hydraulic Valve	SUNNY	Made in USA
7	High-pressure Vitta	Barthez	Made in Portugal
8	Contactor	LG	Made in Korea
9	Air-break Switch	LG	Made in Korea
10	Computer	TECHMATION	Made in Taiwan
11	Limit Switch	OMRON	Made in China
12	Proximity Switch	SCHNEIDER	Made in China
