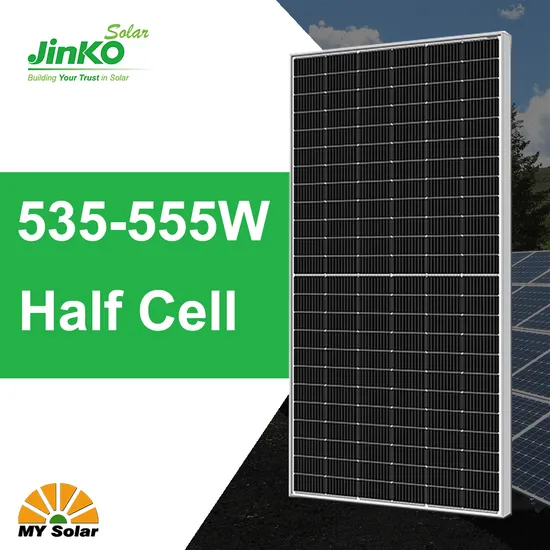

Jinko 144 Cells 535W 540W 545W 550W 555W Mono Solar Module Solar Power Panels Price in Stock

Product Description

SPECIFICATIONS
Module Type	JKM535M-72HL4 JKM535M-72HL4-V		JKM540M-72HL4 JKM540M-72HL4-V		JKM545M-72HL4 JKM545M-72HL4-V		JKM550M-72HL4 JKM550M-72HL4-V		JKM555M-72HL4 JKM555M-72HL4-V
	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (Pmax)	535	398	540	402	545	405	550	409	555	413
Maximum Power Voltage(Vmp)	40.63	37.91	40.7	38.08	40.8	38.25	40.9	38.42	40.99	38.59
Maximum Power Current(Imp)	13.17	10.5	13.27	10.55	13.36	10.6	13.45	10.65	13.54	10.7
Open-circuit Voltage(Voc)	49.34	46.57	49.42	46.65	49.52	46.74	49.62	46.84	49.72	46.93
Short-circuit Current(Isc)	13.79	11.14	13.85	11.19	13.94	11.26	14.03	11.33	14.12	11.4
Module Efficiency STC(%)	20.71%		20.90%		21.10%		21.29%		21.48%
Operating Temperature(°C)	-40°C~+85°C
Maximum System Voltage	1000/1500VDC(IEC)
Maximum Series Fuse Rating	25A
Power Tolerance	0~+3%
Temperature Coefficients of Pmax	-0.35%/°C
Temperature Coefficients of Voc	-0.28%/°C
Temperature Coefficients of Isc	0.048%/°C
Nominal Operating Cell Temperature(NOCT)	45±2°C

MY SOLAR TECHNOLOGY CO., LTD.established in December 2010, is a member of MY Solar group, which is specializing in the desian, manufacture and sales of PV modules and correlative products.Our management team is experienced and professional. Our core products - PV modules, are rational designed, excellent in workmanship, and have a stable performance, power range covers 3Wp-400Wp, are widely used in photovoltaic power stations, BIPV & BAPV, satellite communications, geological monitoring andforest fire prevention, etc. Our products are exported to Europe, America, Asia- Pacific and Africa.MY Solar is a core supplier of many key large projects in China, and is also a supplier of photovoitaic modules and correlative products which is selected, trusted and recommended by many professional designing institutes.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:What are the advantages of your company?
A:We are a factory, and we also cooperate with other brands,such as Longi,JA solar,Jinko,Trina,Canadian Solar,GCL,SUNTECH,Yingli etc., to provide customers with better prices and more choices.
Q:May I have a piece of sample to check the quality?
A:Welcome to place the testing order to check the quality or for testing.
Q:How about the delivery time?
A:15-20 days after receiving your payment.
The specific delivery time depends on the items and the order quantity.
Q:Where is the port of loading?
A:Shanghai,Ningbo.
Q:Can you do OEM?
A:Yes.

---
