High Frequency 5500W Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery

Product Description

High Frequency 5500W Pure Sine Wave Power Inverter MPPT Charge Controller off Grid Hybrid Solar Inverter for Lead-Acid Lithium Battery
Features:
5.5KW Solar Hybrid Inverter Output Voltage: 230Vac±5%, Frequency: 50Hz/60Hz, Max Charging Current: 80A; Max PV Array Open Circuit Voltage: 500VDC, PV Array MPPT Voltage Range: 120VDC~450VDC
Multiple Battery Options: 5500W Solar Inverter 48V DC to 220/230V AC, Built in 100A MPPT Charge Controller. New Upgrade Pure sine wave inverter, for 48V Lead-Acid(Seal, AGM, Gel, Flooded)/Lithium battery and can running without battery
LCD & LED DISPLAY: Hybrid Inverter Configurable input voltage range for home appliances and personal computers via LCD setting. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Complete Protections: PowMr inverter has Overload/Over temperature/Short circuit protection. Smart battery charger design for optimized battery performance. Intelligent variable speed fan efficiently dissipate heat and extend system life.
Wide Range Of Applications: This Off-Grid inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner. Compatible to mains voltage or generator power, Automatic restart when AC power is restored. But inverter not support parallel.
Specifications:

MODEL	PVM4000-24	PVM6000-48
Rated Power	4000w 4200w	6000w 6200w
INPUT
Voltage	230VAC
Selectable Voltage Range	170- 280VAC (For Personal Computers) 90- 280VAC (For Home Appliances)
Frequency Range	50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt.Mode)	230VAC±5%
Surge Power	7000VA	11000VA
Efficiency(Peak)	90%~93%
Transfer Time	10ms (For Personal Computers) 20ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge protection	33VDC	63VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage	500VDC	500VDC
Maximum PV Array Power	6000w	7000w
MPPT Operating Voltage Range	120~450VDC	120~450VDC
Maximum Solar Charge Current	80A	80A
Maximum AC Charge Current	60A	60A
Maximum Charge Current	80A	80A
PHYSICAL
Dimension, L×W×H(mm)	425×330×117
Net Weight(kgs)	9.5	10.6
Communication Interface	USB/RS232/RS485/Dry contact
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C

Company Profile

Shenzhen ZLPOWER Electronics Co., Ltd. was established in 2007. We are national high-tech enterprise which professional in researching, manufacturing and exporting of UPS, power inverters and hybrid solar inverters. Our power capacity range from 400VA to 400KVA parallel series, which can satisfy different requirements of customers. We have passed ISO9001,ISO14001,CE, ETL, KC etc. After several years' accumulation and development, ZLPOWER has a excellent researching and management team and many advanced production testing equipments, which ensures our products stability and innovation and got successful achievements in some fields. Our products are mainly exported to Europe, Africa, Middle East, Asia, North and South America. They're widely used in finance, communication, medical treatment, industry, public security, civil power solutions.

Exhibitions

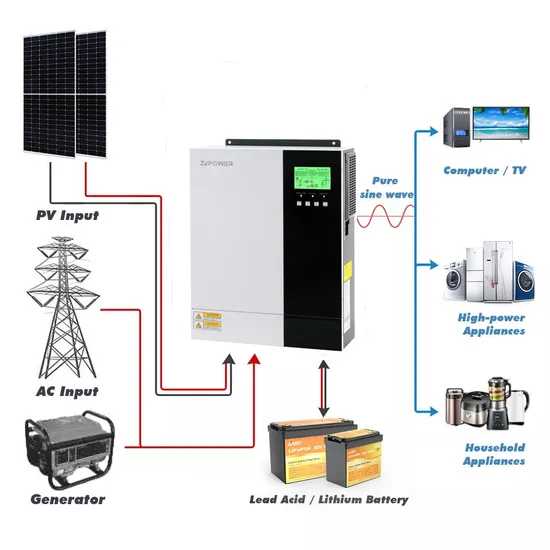

FAQ: Q1. What is hybrid solar inverter? A. A hybrid solar inverter is a device that combines the functionalities of a solar inverter with a battery inverter, allowing it to manage power from multiple sources: solar panels, batteries, and the electrical grid. It provides greater flexibility in energy usage and storage, making it ideal for systems that require both on-grid and off-grid functionalities.
Key Features:
1. Solar Power Conversion: Converts the direct current (DC) generated by solar panels into alternating current (AC) for use in homes and businesses.
2. Battery Integration: Manages battery storage by charging batteries with surplus solar energy or grid power when needed.
3. Grid Connectivity: Can feed excess solar energy back into the grid and draw power from it when solar or battery energy is insufficient.
4. Load Management: Prioritizes power usage between solar, battery, and grid based on availability and user preferences.
Advantages:
• Energy Independence: Stores excess energy for use during nighttime or power outages.
• Cost Efficiency: Reduces reliance on grid power, lowering electricity bills.
• Seamless Operation: Automatically switches between power sources to ensure uninterrupted electricity supply.
• Smart Monitoring: Many hybrid inverters come with smart features like mobile app integration for monitoring energy usage and production.
Applications:
• Residential systems with energy storage.
• Businesses needing backup power solutions.
• Areas with unreliable grid electricity or high energy costs.
Hybrid solar inverters are a popular choice for modern solar power systems due to their versatility and ability to maximize energy utilization. Q2. How's the delivery time? A. usually it will take about 3-5 days for sample and 10-15 days for bulk production Q 3. How much is the hybrid solar inverter? A. The price range USD100-USD500 depends on the function and inverter capacity. Q4. Would you accept to use our logo? A. We would provide free OEM order depends on your quantity. Q5. We want to know month capacity. A. It depends on different model. Total capacity is upto 10000 pieces. Q6. Where is your market? A. Our products are popular all over the world as their cost-effictive perfermance. We hope you can join us and make mutual benefit from our long-term and co-win cooperation. Q7. Does the inverter connect with utility? A.Yes.it is solar and utility complementary inverter. it combine invert, charge and AC auto-transfer switch into one complete case, it also can charge the battery by utility and generator.
