2025 Bcmc Automatic Bridge Saw Cutting Machine with Competitive Price for Granite Marble Quartz Artificial Stone Slabs Processing with CE ISO Certificate

Product Description

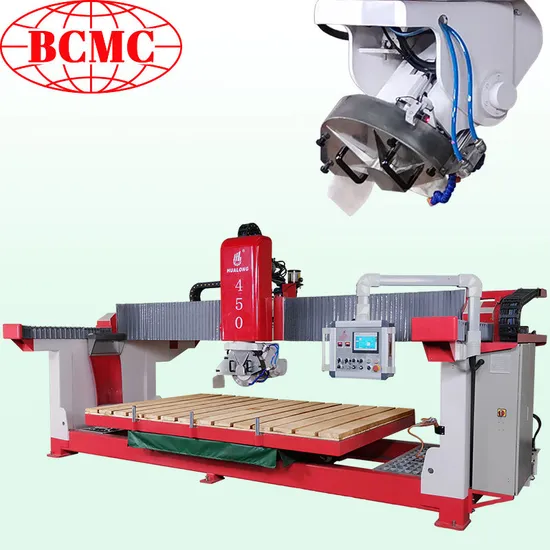

BCMC Machinery BCSQ-450 is a kind of multifunctional manufacturing machine for slab cutting, milling, drill, carving. Can handlling different kind of difficult work in one machine. Ideal for kitchen top, cooking bench, marble, granite and artificial stone processing. It's your good partner for slab processing.
Parameter:

TECHNICAL DATA HLSQ-450
Configuration	Diameter of saw blade	mm	Φ400 - Φ450
	Dimension of working platform	mm	3300 x 2000
	Power of main motor	kw	15
	Power of tool slide reciprocating motor	kw	1.1
	Power of crossbeam shifting motor	kw	1.5
	Power of hydraulic station motor	kw	2.2
	Power of elevator motor	kw	1.5
	Gross power	kw	21.3
Main Performance Parameters	Max. length of horizontal cutting	mm	3300
	Max. thickness of cutting	mm	100
	Max. lifting travel of cutter	mm	300
	Water consumption	m3/h	2
Measurement	Gross weight	kg	5400
	Dimension (L x W x H)	cm	5700x3260x2765

Main Features:
* Monoblock structure for easy transport, installations and no foundation needed.
* Siemens, Schnider electric and other high quality accesories such as Hinwin linear guide are adopted.
* 0°,90°,180° and 270° automatic head rotation and blade positioning.
* Blade can tilt 45° automatically for chamfering cutting.
* Automatic cross cutting repeatedly so easy by pushing one-button.
* Manual cuts available for simple machining.
* Worktable can rotate 0-360 °,pause at every 45° automatically or stop at any degree by remote control.
* Worktable can tilt 0-85°, easy for slab loading.
Detailed Information For Spare Parts:
Control System
Use advanced PLC control system with touch screen to achieve multi programming methods, including manual programming or PC processing operation for powerful functions, which offer friendly and inteligent control.
Linear Guide
Quality linear guide used on crossbeam and carling for high precision of cutting and long lifespan.
Electric Cabinet
Quality electrics used to ensure stable performance.
Laser Reticule Apparatus
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Remote controller(optional)
Easy controlling the movement in 3 axes in distance conveniently
Hydraulic Giant (optional)
For cleaning the machine and keep it tidy.
Application:
* 3D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art/tombstone
* Street furniture
* Ventilated facades

---
