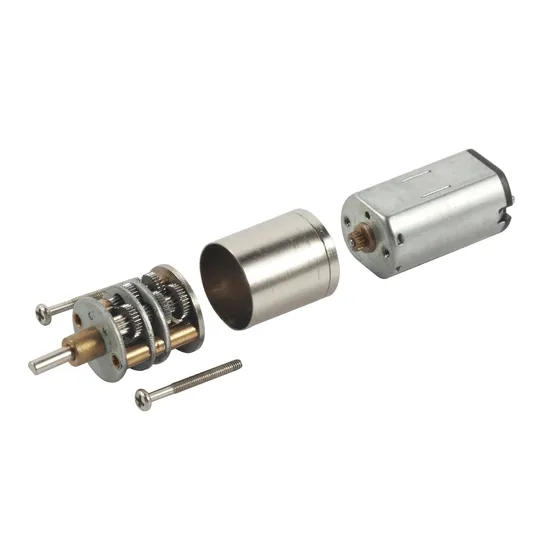

Powerful 3V 6V 12V Micro Brush DC Gear Motor with Low Speed High Torque

Product Description

Powerful 3V 6V 12V Micro Brush DC Gear Motor with Low Speed High TorqueProduct Description
1. Typical Applications:
Electronic lock
Optic equipment
Micro mechanism
2. Specifications:
-Voltage: 3-12V
-Speed: 30-300RPM
-Torque: 0.08-0.29Kg. Cm
-Current: 80-180mA
-Output: 40-280mW
Drawing:
Gearbox

Number of stages	3	4	5	6	7	8
Gear ratio i	9.6	24	48	120	240	600
	12	30	60	150	300	750
			75	187.5	375	937.5
					468.8	1172
Length of gearbox	10.8		13.0	14.4	16.6	18.8

DC Motor+Gearbox

Specification
MODEL	VOLTAGE V	NO LOAD		AT MAXIMUM EFFICIENCY				STALL
		SPEED rpm	CURRENT mA	SPEED rpm	TORQUE kg.cm	CURRENT mA	OUTPUT mW	TORQUE Kg.cm	CURRENT mA
D122-000030	2.4	450	70	300	0.06	250	190	0.3	1200
D122-001060	3.0	180	60	140	0.08	150	110	0.5	600
D122-002150	3.0	70	60	55	0.17	200	100	1.2	600
D122-002300	3.0	25	40	25	0.2	80	50	2	300

Company Profile
PROFESSIONAL MOTOR MANUFACTURERFounded in 2006, I.CH is a professional Micro Metal Gear Motor factory over 16years. We have worked with over 50 countries' customers arround world. We have over 20 patents in gearbox field.We focus on the development of planetary gearbox and matched different type of motors, such as DC brush motor, Brushless DC Motor, Stepper Motor and Servo Motor. Custom Service for micro gear motor with encoder and dual shaft in special specification, The light weight with high torque and low speed is widely used in a variety of industrial, home application and hobby appliance.16+Experience50+Countrie's Customers 20+ Patents 1000+ Factory Area Certifications
Factory Equipments

Work Flow:
Customer Visiting
Packaging & Shipping
