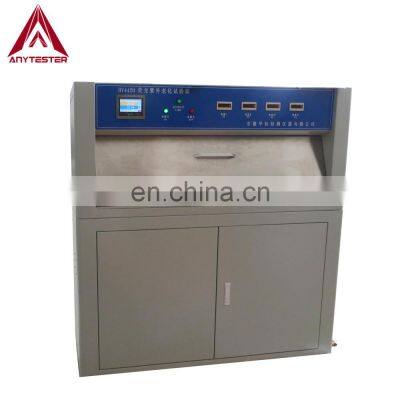

HY4420 Ultraviolet Accelerated Weatherometer is used to simulate ultraviolet radiation, rain spraying, condensation, temperature and humidity environment for accelerated ageing test of textile, rubber, plastic, paint, coating and other product. It adopts UV lamp as light source.
Standard
ISO 1431
| GB/T 7762
| BS EN 12224
|
Note: For more standards, please contact us
|
|
|
Specification
Model
| HY4420
|
Dimensions of working chamber
| 450×1170×500mm (D×W×H)
|
Temperature range
| RT+10℃~+70℃
|
Temperature fluctuation
| ±1℃
|
Temperature uniformity
| ±3℃
|
Humidity range
| ≥95% R·H
|
Center distance of UV lamp
| 65~70mm
|
Distance between specimen and surface of lamp
| 50±2 mm
|
Timing range
| 0~999h
|
Light source
| UVA-340 or UVB-313
|
UV wavelength range
| 315~400nm, 280~315nm
|
Size of specimen rack
| 80×300mm
|
Power supply
| AC220V 50Hz 3.5kw
|
Dimensions
| 500×1380×1480mm (D×W×H)
|
Weight
| 120kg
|
Details & Features
★ Imported UV lamp, ballast, starter and solid-state relay★ 304 SUS stainless steel casing
★ Air duct in the chamber adopts single cycle system to improve the air flow, heating capacity and the uniformity of temperature in the chamber
★ Real-time display running time, running phases, remaining time; can display test data, including set temperature, current temperature, total running time, running time of current phase, remaining time of current phase, heating condition, calendar time, etc.; digital display temperature
★ Several alarm function: absolute value alarm, deviation alarm
★ Control system adopts zero passage triggering through solid-state relay, low noise, less pollution, easy to maintain, high control accuracy
★Current leakage protection function, overload power-off function, over-temperature protection, water lack protection, etc.
★ Spraying system is optional to meet more test standard and simulate more circumstances
