•High accuracy of voltage and frequency regulating with fast reponse time.
•Pure and stable sinewave output, withstands all kinds of load.

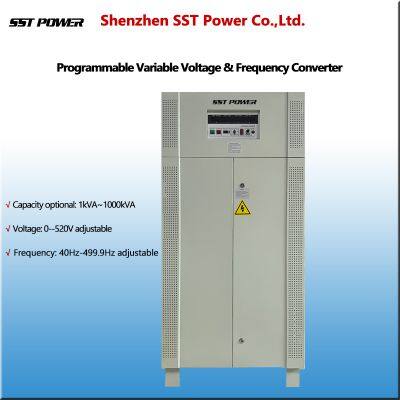

| FC33 3 Phase in 3 Phase out Variable Voltage & Frequency Converter |
| Item | FC33 |
| Power Rating（KVA） | 10K | 15K | 20K | 30K | 45K | 60K | 75K | 100K | 120K | 150K | 200K |
| Control Method | IGBT/PWM (Pulse Width Modulation) |
| Input |
| Rated Voltage | 3P4W+G 380V |
| Voltage Range | ±10% |
| Frequency | 50/60Hz(47Hz-63Hz) |
| Output |
| Rated Voltage | Low Grade：0-300V ; High Grade :0-520V |
| Limit Current Low Grade(L-N)(A) | 28 | 42 | 54 | 83 | 125 | 167 | 208 | 275 | 333 | 417 | 558 |
| Limit Current High Grade(L-N)(A) | 14 | 21 | 27 | 42 | 63 | 83 | 104 | 138 | 167 | 208 | 279 |
| Source Voltage Regulation | ≤±1% |
| Load Voltage Regulation | ≤±1% |
| Power Factor | PF≥0.8 |
| Frequency | 400HZ（499.9HZ can be customized） |
| Frequency Stability | ≤0.01% |
| Wave distortion | ﹤2% |
| Efficiency | ≥90% |
| Reponse time | ≤2ms |
| Crest Factor | 3:01:00 |
| System Protection | Overload, over voltage, over current, input under voltage, over temperature, short circuit |
| LED Display |
| Voltmeter | 4 Digital LED display for output voltage, resolution 0.1V |
| Ammeter | 4 Digital LED display for output current, resolution 0.1A |
| Wattmeter | 4 Digital LED display for output power, resolution 0.1W/0.1KW |
| Frequency Meter | 4 Digital LED display for output frequency, resolution 0.1Hz/Step |
| Others |
| Cooling System | Air |
| Insulation Resistance | ≥2MΩ |
| Voltage-endurance | The whole machine has no breakdown and no arcing phenomena for 2000VAC/ min. |
| Working Environment |
| Ambient Temperature | 0℃-45℃( No condensation ) |
| Working Humidity | 0℅-90℅( No condensation ) |
| Altitude | ≤1500m |
| Dimension |
| Size WxDxH(mm) | 500×650×850 | 550×750×1100 | 700×900×1300 | 800×1100×1400 | 850×1220×1400 |
| Net Weight (KG ) | 160 | 200 | 260 | 320 | 370 | 400 | 440 | 900 | 950 | 1250 | 1650 |
| Gross Weight (KG ) | 180 | 220 | 280 | 370 | 400 | 430 | 490 | 950 | 1000 | 1300 | 1700 |
| Product specifications are subject to change without further notice. |
