Handfree Wired Code Reader 2D Desktop Imaging Computer Barcode Scanner

US$30.00-36.00 1 Piece (MOQ)

Basic Info.

Model NO.

OCBS-T208

Kind

Flatbed Scanner

Scan Speed

200 scans/sec

Scanning Light Source

LED

Usage

Barcode Scanner

Network Scanning

Support Network

Interface Type

RS232, USB, COM

Scanning Element

CMOS

Optical Resolution

N/a

Application

Barcode Scanner

Light Source

LED White LED

Image Sensor

640*480 Pixels

Resolution(Maximum)

0.102mm / 4mils

Motion Tolerance

1.22m/Sec

Reading Indicators

Buzzerad

Color Available

White; Blue

Cable

1.55m

Drop Resistance

Withstands Repeated Drops From 1.2m/4.0 FT Onto a

Temperature

Operation: 0 to 40 °c

Interfaces

RS-232; USB HID; USB COM;HID POS Available as Per

Transport Package

79*102*125mm

Specification

77*100*123mm

Trademark

OCOM/OEM/NEUTRAL

Origin

Shenzhen, Guangdong

HS Code

8471900090

Production Capacity

50000PCS/Year

Product Description

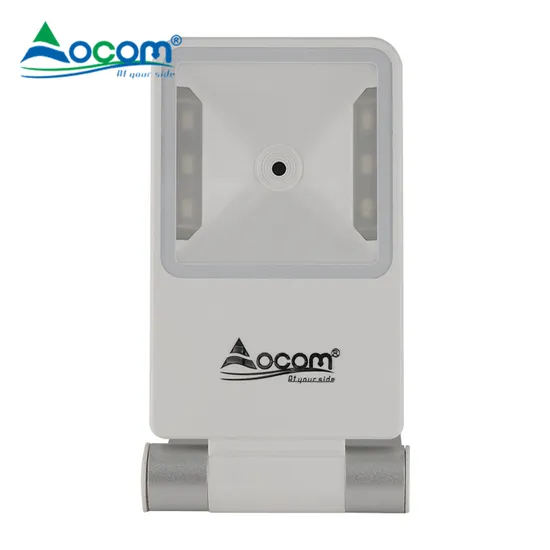

Handfree Wired Code Reader 2D Desktop Imaging Computer Barcode Scanner
(M/N:OCBS-T208) Features:
Foldable design to support flexible application.
300,000 pixels overall situation exposure
Read all mainstream 1D&2D barcodes.
Accurately read screen, damage, curved, fuzzy bar code.
Multiple interfaces, RS-232/USB HID/USB COM/HID POS.
High-performance imaging technology.
Compatible with Microsoft Windows/Linux/Android/IOS/MacOS.

Performance Parameter
Light Source	LED White LED
Image sensor	640*480 pixels
Resolution(maximum)	0.102mm / 4mils
Print contrast ratio(minimum)	≥15%
Motion tolerance	1.22M/sec
Reading Angle	Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°
Decoding Capability	1D: All standard 1D codes, including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.



Reading Indicators	Buzzer(adjustable tone)
Typical depth of Filed	Precision Barcode Depth of Filed 5mil CODE128 40mm-110mm 5mil EAN-13 40mm-110mm 13.34mil EAN-13 65mm-300mm 5mil PDF417 40mm-100mm 10mil PDF417 30mm-210mm 15mil PDF417 30mm-310mm 20mil DM 20mm-110mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)








Physical characteristics
Color available	White; Blue
Dimensions(LWH)	77100123mm
Weight	209g
Cable	1.55M
Electrical Parameter
Current	Working current(Standard): < 280 mA Standby current(Standard): < 210 mA
Input Voltage	5 VDC (+/- 10%)/500mA
Environmental Parameter
ESD protection(Air discharge)	8 kV
Drop resistance	Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface.
Particulate and water sealing	IP52
Temperature	Operation: 0 to 40 °C
Temperature	Storage/Transport: -40 to 70 °C
Humidity(non-condensing)	5 - 95%
Ambient light	0 -100,000 lux
Interfaces
Interfaces	RS-232; USB HID; USB COM;HID POS available as per customer's needs
