Product Details
Product Description
Product Description

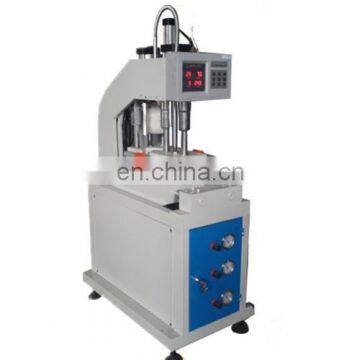

single head welding machine for upvc window and door machine
Product Description
This machine is used for PVC door and window welding processing with variable angle ranging from 30~180º, It features programming control,pneumatic driving,reliable function,simple operation and convenient maintenance.The machine is made up of machine head.machine frame,electric controlling tank and material support etc,There are fixing machine,pressing machine and heating machine etc.
Working Air Pressure 0.5~0.8Mpa
Air Consumption 50L/min
Power Supply 220V 50Hz
Total Power 1.2kw
Welding height 20~120mm
Max.width of profile welded ≤120mm
Max.cut dimension of profile welded 330mm
Outside Dimension 960*900*1460mm
Weight(about) 280kg
Packaging & Shipping
1).This machine is used for welding PVC/UPVC/Plastic/Vinyl window door profile.
With programming control and pneumatic driving systems, it has the features of
high reliability, large processing range and easy operation.
2).This machine can weld about 15 pieces windows doors per day in 8 working
hours, if your production plan is more than 15 pieces windows doors, you can
consider to buy two head welding machine, three head welding machine or four
head welding machine, if very very large, you can consider to buy the CNC vertical
type four corner welding machine.
3).About this welding machine, if your proifle height is higher than the common
proifle height, you can tell us, then we can make the machine specially for you
accoridng to your true proifle max.height, so that can make sure the welding
machine can clamp and hold your profile exactly then make welding.
3).This machine, it is our common welding machine, if your profile is Europe profile,
it is no problem, if your profile is America type profile,it needs to make backup
moulds according to the profile sample, so if it is America type profile, it needs
customer post the profile sample to us,then we make the moulds according to
the sample.
4).If you profile thickness(height) is higher than 120mm, and also want to use this
common welding machine, we can make the welding head higher with some device,
but it needs to customer pay some extra charge about this.
5). All machine parts, we use famous brand:
Remarks:
A. Pkg: for long time transportation
B. Terms: Freight On Board (FOB Qingdao)
C. From Qingdao, China
D. Delivery Time: During 7 Days After We Receive Your First Payment.
E. Payment: Telex Transfer (T/T), 30% be Paid as deposit, and the rest 70% is paid before delivery the
machine.
F. Guarantee period: 1 year from the date of customer receiving the machines.
