M7132X1000 magnetic chuck surface grinding machine price list

Product Description

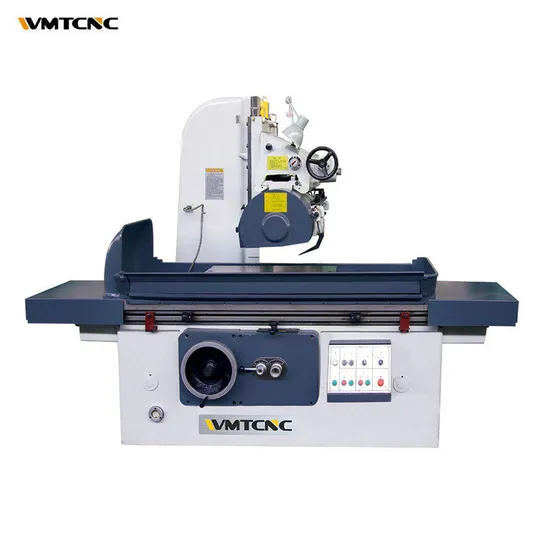

Hydraulic Surface Grinding Machine M7132
1,The Metal surface grinding machine table in longitudinal movement driven by the vane pump, which is stability and low noise. The temperature of oil pool is low and the precision is fit for National Standard (GB/T4022-1983).
2,It can be carried out trough and flange lateral grinding.
3,Grinding head has rapid movements mechanism invertical movement, but also manually feed.
4,Grinding head vertical move can be adopted with power rapid movement or hand micro feed.
5,Grinding head motor and pump motors are high-grade motor, electrical carry out the national safety standards
6,Metal surface grinding machine have a position for installing digital readout
Specification:

Specifications	M7132
Worktable size	320x1000/1600/2200/3000/4500mm
Max. processing dimension width	320mm
Max. processing dimension length	1000/1600/2200/3000/4500mm
Max. processing dimension height	400mm
Max.distance between spindle center to worktabe surface	575mm
Lingitudinal moving speed of worktable	3-27m/min
T slot number*W	3*18mm
Consecutive feed speed	0.5-4.5m/min
Intermittent feed speed	3-30mm/t
Rapid speed	400mm/min
Hand wheel feed	0.005mm/gra
Motor power	5.5kw
Motor speed	1440rpm
Total power	9/11kw
Max.loading capacity of worktable with chuck	500/800/1100/1500/2250 kg
Wheel size (OD*W*ID)	350x40x127mm
Machine size lenght	2860/4250/5750/7880/12170mm
Machine size width	1865mm
Machine size height	2030mm

Standard accessories:
Tool box, Balancing stand
Flange wrench,Foundation bolts, Open-end wrench
Inner hexagon spanner
Wheel dresser,Balancing shaft
Setting palte, Wheel dresser holder
Permanent magentic chuck Optioanl accessories:
2 axis DRO
CE protection
Machine vice
Vacumn pump

---
