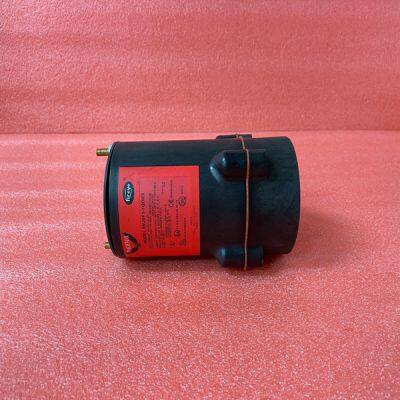

FIREYE 85UVF1-1QDK3

Product Details

Product Description

Product Description
Brand:FIREYE
Type:85UVF1-1QDK3
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Navigate to the ProSoft Configuration Builder download link, and save the file to your Windows desktop. 3 After the download completes, double-click the file to install. If you are using Windows 7, right-click the PCB installation file and then choose RUN AS ADMINISTRATOR. Follow the instructions that appear on the screen. 4 If you want to find additional software specific to your MVI69E-MBS, enter the model number into the ProSoft website search box and press the Enter key.
Generating the AOI (.L5X File) in ProSoft Configuration Builder The following sections describe the steps required to set up a new configuration project in ProSoft Configuration Builder (PCB), and to export the .L5X file for the project. 2.3.1 Setting Up the Project in PCB 1 Start PROSOFT CONFIGURATION BUILDER (PCB). 2 The PCB window consists of a tree view on the left, and an information pane and a configuration pane on the right side of the window. The tree view consists of folders for Default Project and Default Location, with a Default Module in the Default Location folder. The following illustration shows the PCB window with a new project.
In the Tree view, right-click DEFAULT MODULE, and then click CHOOSE MODULE TYPE. This opens the Choose Module Type dialog box. 4 In the Product Line Filter area of the dialog box, click MVI69. In the Select Module Type dropdown list, click MVI69E-MBS, and then click OK to save your settings and return to the ProSoft Configuration Builder window. The MVI69E-MBS icon is now visible in the tree view.
2.3.2 Creating and Exporting the .L5X File There are two parameters in the PCB configuration that affect the format of the .L5X file that is exported. Before exporting the .L5X file to the PC/Laptop, check the Block Transfer Size and Slot Number parameters. 1 Expand the MVI69E-MBS icon by clicking the [+] symbol beside it. Similarly, expand the icon. Double-click the icon to open the Edit - Module dialog box. 2 Set the Block Transfer Size to the desired size of the data blocks transferred between the module and processor (60, 120 or 240 words). Block transfer size information can be found starting in the section on Normal Data Transfer (page 68).

---
