Dx 1215 End Face Milling Machine for H Beam Box Beam

Product Description

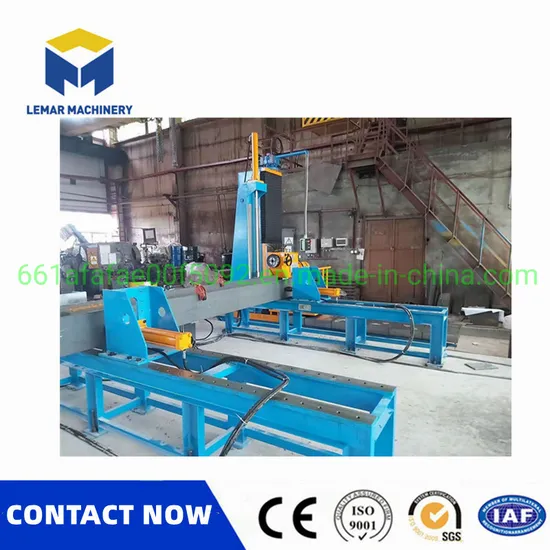

DX 1215 VFD End Face Milling Machine for H Beam Box Beam H beam box beam CNC end milling machine includes end milling machine host, as well as a set of hydraulic support, a set of ¢200mm standard milling cutter head. The power head can manually adjust the angle of 0-45°, and can perform bevel cutting and milling on H-beam and box beam.
The end face milling machine has a higher degree of automation than ordinary machine tools, and the end of the H-beam box beam cutting and milling has higher precision and more stable quality.
The end face milling machine has a large processing range and is suitable for end face cutting of metal materials such as castings and steel parts.
Specification:

Model	DX1215	DX1520
Section height	1200mm	1500mm
Section width	1500mm	2000 mm
Working speed in the horizontal direction of the sliding table	100~800 mm/min	Frequency conversion speed regulation, milling feed speed
The speed of advance and rewind in the horizontal direction of the slide table	1200 mm/min	Adjust the speed
Power head vertical milling speed	100~800 mm/min	Frequency conversion speed regulation, milling feed speed
Horizontal feed motor power	2.2 kW	Frequency
Vertical adjustment of motor power	3.0 kW	Frequency
Milling head power	5.5KW Or 7.5KW
Vertical milling speed	55~500 mm/min
Horizontal milling speed	50~440mm/min
Milling angle	0~45°

Features: 1.The cutter head equipped by Lemar as an H-section steel box beam automatic cutting face milling machine is a standard milling cutter head, and the material of the cutter head is a convertible carbide steel blade.
Users can easily buy standard milling cutters from the market according to their needs
2.The horizontal guide rail protective cover is a special telescopic protective cover for the beam end face beveling machine, which has good sealing performance, good heat dissipation and long service life of the machine tool.
3.Both vertical and horizontal directions can be milled, both of which are controlled by variable frequency speed regulation
4.PLC+touch screen+encoder control of Beam steel structure end face milling equipment 5.H beam box beam end face miller manufacturer supplies man operation platform on the bed, which is convenient for milling and tool setting.
6.There is a manual oil pump on the guide rail, which is convenient for guide rail maintenance.
Edge milling machine cutting amount reference:

Diameter of cutter head D(mm)	Number of teeth for standard face mills z	Recommended stock removal per tooth m(mm)	Recommended cutter head speed(rpm.)	Appropriate cutting speed v(mm/min.)	Set the cutting face width A(mm)	Cutting depth with 3KW power head h(mm)	Cutting depth with 5.5KW power head h(mm)	Cutting depth with 7.5KW power head h(mm)
160	9	0.18	400	650	15	3	6	8.5
					20	2.2	4.3	6
					30	1.35	2.7	3.7
					40	0.97	1.9	2.7
					50	0.74	1.5	2.1
200	12	0.16	320	610	15	3.3	6.5	9.1
					20	2.3	4.6	6.5
					30	1.45	2.9	4
					40	1.03	2	2.9
					50	0.8	1.6	2.2

---
