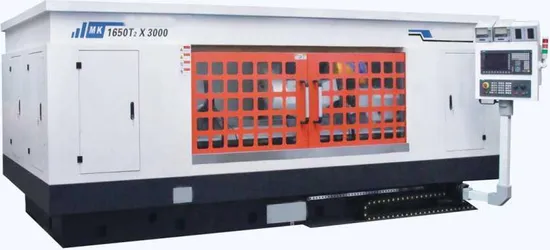

Mk1 350t2 CNC Cylindrical Grinding Machine with Double Grinding Wheelstock

Product Description

Product Description
Main functions and features
• This machine is a four-axis two-linkage CNC (end face) cylindrical grinding machine, which can simultaneously process the outer circle, end face and arc of both ends of the car or train axle at one time. It has the characteristics of high efficiency, high precision and simple operation. It has a very high cost performance, and one person can operate several machine.
• The machine adopts Siemens 828's four-axis two-linkage CNC system. The AC servo motor controls the headstock (C axis), the feed of the double grinding wheelstock (X1, X2 axis) and the movement of the double sliding table (Z1, Z2 axis) respectively through the precision reducer.
• The grinding wheelstock adopts a dynamic and static pressure bearing structure, which has high rotation accuracy and high rigidity, which can realize wide grinding wheel grinding. It has the function of frequency conversion speed regulation to realize the grinding wheel segmentation 45m/s constant linear speed grinding to ensure the stable and reliable operation of the grinding wheel spindle.
• The headstock (C axis) is driven by a synchronous belt wheel controlled by a servo motor to ensure stable and reliable grinding. Can realize automatic loading and unloading.
• The tailstock adopts a servo constant force automatic tightening mechanism. The tightening force is adjustable to ensure grinding accuracy.
• The grinding wheel dressing method is the front double diamond pen dressing, which realizes automatic dressing and automatic compensation. It can dress the outer circle, end face and circular arc.
• The machine is equipped with end face positioning and external circle online measuring instrument to ensure the stability of the workpiece size.

Product Parameters

Description	(unit)	MK1350T2×3000/4000	MK1650T2×3000/4000
External grinding diameter	(mm)	φ30~φ500	φ30~φ500
Maximum grinding length	(mm)	1000mm()/1500	1000mm()/1500
Center height	(mm)	270	270
Center distance	(mm)	3100/4100	3100/4100
headstock center	(morse)	6#	6#
tailstock center	(morse)	6#	6#
Max. weight of workpiece	(Kg)	1000	1000
Wheel size	(mm)	φ750×(90-280)×305	φ750×(90-280)×305
Linear speed of grinding wheel	(m/s)	45	45
Spindle speed of grinding wheel	(r/min)	1146	1146
Min. Pulse amount of X1 and X2-axis	(mm)	0.001	0.001
Min.Pulse amount of Z1 and Z2-axis	(mm)	0.001	0.001
X1and X2 -axis servo motor	(KW)	22Nm	22Nm
Z1and Z2 -axis servo motor	(KW)	22Nm	22Nm
Total capacity of motor	(KW)	60	60

Detailed Photos
Our Advantages
Who We Are?
Founded on March 30, 2016, HANMING aims to provide customers with excellent products and services and industrial complete equipment solutions.
HANMING has always been standing in the perspective of every customer to deal with problems and ensure the timely and efficient handling of problems. Our salesmen are experienced senior marketing engineers who have been working in the industry field for many years, and our inspectors are technical engineers, which ensure our professionalism. Our products are mainly metal cutting machine, metal forming machine and other industrial equipment.
What Do We Can Do?
The core competitiveness of HANMING is having a strict quality management system and a team that can provide excellent services. We are familiar with the machine tool industry in China and know the positioning of products in various factories. We will select the most suitable machine tools for customers and ensure that after the completion of the machine tool, we will send quality control team to each factory for inspection to ensure that the machines delivered to customers are high-quality products that have been inspected. Our inspectors are also after-sales service personnel to ensure that every after-sales service problem can be timely communicated with each factory and give timely feedback.
Our Aim:
Relying on the keen market insight, HANMING makes forward-looking decisions on the changeable market and actively deals with and overcomes the difficulties encountered by the enterprise in various periods. Today, a steady and pragmatic team leads Hanming forward to open up a new world in the industrial export industry.

---
