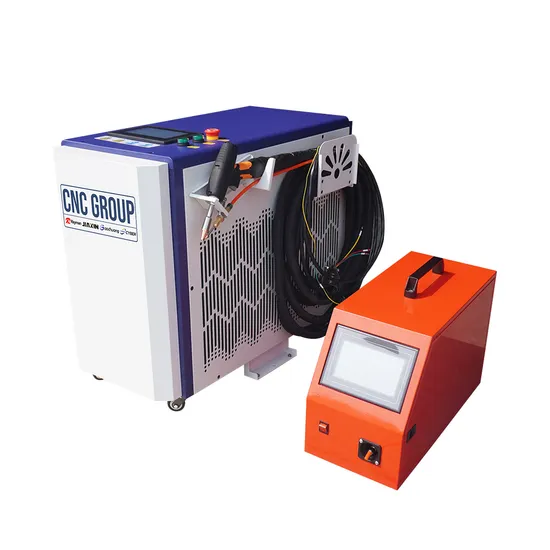

Cheap Price CNC Group 1000W Handle Fiber Laser Welding Machine for Carbon

Product Description

Product Description

Model	GC- 1000W	GC- 1500W	GC- 2000W	GC- 3000W
Laser Power	1000W	1500W	2000W	3000W
Laser Type	Fiber
Wavelength	1080±5nm
Gross Power	< 8000W
Welding Thickness	< 6mm (0.315 in)
Welding Gap Requirements	≤ 0.5mm (0.019 in)
Welding Speed	0 -120 mm/s (0 - 4.724 in/s)
Welding Head Configuration	Wobble Welding Head
Beam Divergence Angle	≤ 1.2mrad / m
Welding Joint Interface	QBH
Laser Operation	Continuous / Modulation
Cable Length	< 10m (39.370 in)
Spot Dia	0.2-2mm Adjustable
Positioning	Red Pointer
Cooling System	Water Cooled - Inner Industrial Chiller
Accessories	Safety Glasses, Power Connecting Plug
Process Gas	Argon, Helium, Argon + CO2 Mix Pressure Approx. 620 kPa, (90 psi)
Work Environment	5-35ºC (41-95ºF)
Dimensions (L × W × H)	1100mm (48.503 in) × 1100mm (23.622 in) × 650mm
Voltage	220V±10% / 50-60Hz / 30A			380V±10% /50-60Hz / 40A
Weight	245Kgs (540 lbs)			285Kgs (628 lbs)

Company Profile
jining Gaochuang cnc equipment company integrates D&R ,manufacture,sales,service in one, specilized in produce: cantilever type portable cnc cutting machine(flame/ air plasmer) table type cnc cutting machine flame/air plasmer straighting-line cutting machine Gantry cnc cutting machine welding machine, CO2 welder, inverter welder etc ,
FAQ:
Q1: How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video. We will recommend you the suitable model with the reasonable price.
Q2: How about the lead time?
For the standard machine, the delivery time is 3-7 days after the payment.For the non-standard machine, the delivery time is 7-15 days after the payment.
Q3:How to install and use it?
We have the instruction Book, Operational manual and Training Videoinside the machine.We also can provide the training on lineby free.
Q4:How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solveit by mail.phone, or video communication.
Q5: If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also pro-vide free trainingcoursein our company.
Q6:Do you provide the onsite service if we needed?
Yes. We can provide the onsite service if you needed. But need the cus-tomer pay for the transport,hotel, food and 60USD/day..

---
