China Oscillating Granulator Yk-90 Laboratory Pharmaceutical Granules Granulator

Product Description

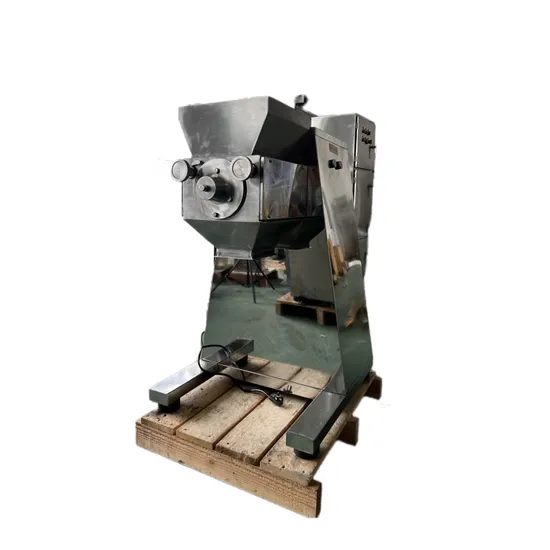

China Oscillating Granulator YK-90 Laboratory Pharmaceutical Granules Granulator
This machine is mainly for pelletizing moist powder, and also fr smashing dry blocks into granulaters. It's convenient to dismantle and assemble for users.
This machine makes use of the rolling motion of rotating barrel, granulates the wet powder materials into granule by sieve, it also can be directly used to crush the agglomerate material into small granule.
In chemical medicine field, it can be used to granulate the mixed powder into granule, and compressed granule into tablet after being dried. In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products. In other industries, it can be used to granulate such as porcelain and plastic mixtures into forming granules.Model: YK-90 Small Oscillating Granulator
Production ability: 50kg-100kg / hour
Power supply: 380V 0.75KW
Swing angle: >360(degrees)
Diameter of roller: 90mm
Rotating speed of roller: 46 times/min
Dimensions: 750*460*840mm
Weight: 150kg
Swing granulator can be mixed powder was made of particles, can also be crushed dry bulk material into the desired granules. For the pharmaceutical, chemical, food, research institutes, laboratories, hospitals and small health care products plant small batch production.
It can make well stirred raw materials become granules of required size of crush the blocked raw materials small granules.
The machine is applicable for pharmaceutical,foodstuff,chemical,solid drink and so on lndustries.

YK-90 Small Oscillating Granulator Technical Paramaters

Type#	YK-90
Roller Diameter (mm)	60mm
Production Capacity (kg/h)	50-100 kg/h
Swing Range (degrees)	>360 degrees
Rolling Swing Times (t/m)	50 times/min
Motor Powder (w)	750w
Weight (kg)	150kg
Dimension (mm)	750*460*840mm

YK-90 Small Oscillating Granulator Features

1. The YK-90 drum and screen are easy to disassemble for easy cleaning.2. The YK-90 transmission system is enclosed inside the machine body and embedded with a lubrication system to ensure smooth operation of the equipment.3. The YK-90 screen adopts metal wire mesh or stainless steel plate mesh, which ensures good granulation effect, high efficiency, and long service life of the screen.

Finished Desired Powders Shows

The machine is suitable for pharmaceutical, foodstuff, chemical, solid drink and so on industries.
It can make the stirred raw materials become granule with needed size or crush the blocked raw materials into small granule. The machine is mainly used for making granule with different specifications of pharmaceutical industry , chemical industry ,foodstuff industry ,etc .After dried ,the granule can be pressed into all kinds of shaped products. The machine can also used for crushing dried raw materials that are cohered.

YK-90 Small Oscillating Granulator Shipping

1. we will use good packaging to pack the small oscillating granulating machine in order to make sure they are completely protected perfectly .
2. we will check the machine to be good condition, and made small adjustment to make sure you can use the machine smoothly once you receive it

Shipping:	Strong Packaging
Payment:	Escrow Payment T/T WU MG
Delivery:	HKEMS, EMS, HK Air Post, UPS FEDEX at your option.
Country:	Europe Region, Canada, Australia, UK, USA and so on

Other Oscillating Granulator for choice

Model	YK-60	YK-90	YK-160
Roller Diameter (mm)	60mm	90mm	160mm
Production Capacity (kg/h)	20-30 kg/h	50-100 kg/h	200-300 kg/h
Swing Range (degrees)	>360 degrees	>360 degrees	>360 degrees
Rolling Swing Times (t/m)	46 times / min	50 times / min	55 times / min
Motor Powder (w)	550w	750w	2200w
Weight (kg)	55kg	150kg	250kg
Dimension (mm)	460*550*570mm	750*460*840mm	1100*750*1270mm

FAQ ( Frequently Asked Questions )

Q: What's your MOQ ?
A: It is ok if you need 1 piece of this Oscillating Granulator for a test .
Q: How can I pay ?
A: We have western union, bank transfer and Online payment ways ( VISA,MasterCard,JCB,Discover,AMERICAN EXPRESS ) with trade assurance.

Q: What's the shipping time
A: Different countries have different shipping time, you can tell me which city you are in, and we would tell you the accurate shipping time .
Q: What's the shipping service
A: We can help complete Customs-clearance, and also cover tariff since many friends don't want to contact Customs to do Customs-clearance in person .
Q: Which Machines are in stock ? I need quick delivery after my payment .
A: Oscillating Granulating machines, Capsule filling machines, Tablet presser machines, Tablet deduster machines, Counting machine and relevant machines are in stock for quick shipment.
Q: How long does it take to do maintenance on the Oscillating Granulator?
A: It takes about 1-2 hours to clean, disassemble, and grease it. We recommend that this is done at the end of every run to ensure the maximum life of your machine
Q: How can You guarantee the quality ?
A: 1. we have 100% test before shipping out order ;
2. quality guaratee of 12 months ;

---
