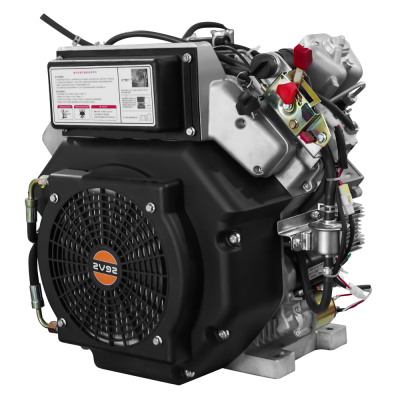

Model | 2V92F |
BorexStroke(mm) | 92x75 |
Engine Type | V-twin、4-stroke、air-cooled、direct injection、electric start |
Displacement(L) | 0.997 |
Compression Ratio | 19:1 |
Rated Speed(rpm) | 3000 | 3600 |
Rated Power(kw) | 15 | 16 |
Fuel Consumption(g/kw·h) | ≤255 |
Fuel Tank Capacity(L) | 12 |
Lube Oil Capacity(L) | 3.2 |
Lubrication System | Full-pressure lubrication+Splash lubrication |
Fuel No. | 0#(Summer)/-10#(Winter),-35#(Chill cold) Diesel |
Lube Oil No. | SAE15W40(CF grade above) |
Rotation direction of output end | Counter-clockwise |
Overall Dimension(LxWxh)(mm) | 450x570x530 |
Net Weight(kg) | 72 |
Packing Size(mm) | 640x640x725 | 640x640x845(Fuel Tank) |
20GP | 81/54(Fuel Tank) |
40GP | 162/108(Fuel Tank) |
40HQ | 243/162(Fuel Tank) |
