Milling Cutting Drilling CNC Automatic Lathe Slant Bed Lathe Machine for Metal

Product Description

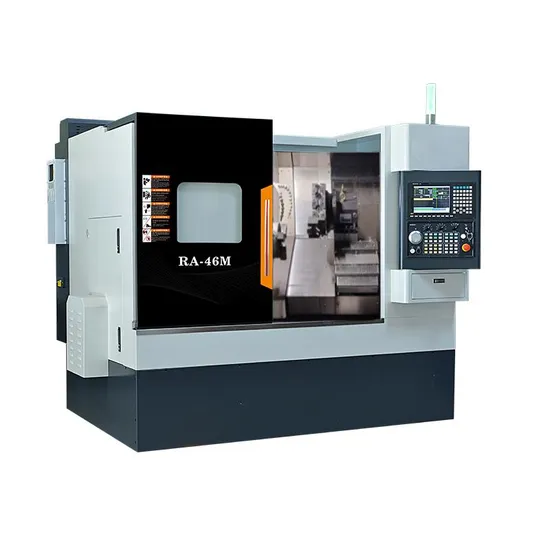

Introducing our High-Precision, High-Speed CNC Milling, Drilling, and Turning Slant Bed Lathe Machine-a hot seller renowned for its unparalleled speed, precision, and durability. Elevate your production line with this exceptional machine designed for efficiency.
Product Description

Processing Capability			Unit	RA-46MY
Processing Capability	Maximum bed swivel diameter		mm	Φ560
	Maximum machining diameter		mm	Φ520
	Maximum machining diameter on the tool holder		mm	Φ128
	Maximum processing length		mm	Φ320
	Maximum bar through-hole diameter		mm	46
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-5
	Spindle through-hole diameter		mm	Φ56
	Maximum spindle speed		rpm	4500
	Hydraulic cylinders/chucks		Inch	6''
Axis feed	Axis travel	X-Axis	mm	270
		Z-Axis	mm	400
		Y-Axis	mm	±35
	Travel Speed	X-Axis	mm	24
		Z-Axis	mm	24
		Y-Axis	mm	10
	Rail Type		/	Linear track 35 (ball)
Turret	Number of tool positions		pcs	BMT40-12T with Y-axis
	OD tool holder specifications		mm	20×20
	I.D. Tool Holder Specifications		mm	Φ25

• Engineered for high-precision machining, our machine tool excels in meticulous cutting tasks. Its design facilitates flawless internal and external precision, perfect roundness, and impeccable coaxiality, ensuring superior machining results.
• Versatility at its finest: Our machine seamlessly executes multiple intricate processes in one cycle. Capable of handling radial and axial cutting, drilling, tapping, hobbing, scribing, drawing, and more, it delivers unmatched efficiency and precision.
• Clamping and positioning the workpiece:
The gripper is expertly crafted to securely hold the workpiece in a steadfast position, ensuring stability throughout the entire machining process.
Achieving precision positioning, the gripper maintains optimal alignment between the workpiece and the cutting tool, guaranteeing superior machining accuracy every time.
• Solve special clamping problems:
Our specialized fixtures are the ideal solution for crafting holes, shafts, slots, and threads in complex parts, effectively tackling tasks that conventional fixtures can't manage.
These meticulously designed fixtures cater specifically to unique workpiece machining challenges, providing innovative solutions beyond the capabilities of traditional fixtures.

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Control System
Anoher Advantages
• Enjoy optimal processing conditions and a superior production setting that ensure flawless execution of every project, every time.
Armed with state-of-the-art imported machinery, including a horizontal machining center, vertical machining center, CNC boring machine with a rotating table, and gantry guideway grinding machine, we guarantee exceptional accuracy in workpieces. This precision enhances assembly quality and extends the longevity of accuracy, delivering unmatched reliability.
• Revolutionary Detection Methods
Positioning accuracy is rigorously tested and finely adjusted using the latest laser technology, strictly adhering to the stringent German VDI3411 inspection specifications, encompassing five comprehensive tests each.
Each machine tool undergoes comprehensive processing tests before leaving our facility, ensuring they not only meet but exceed anticipated processing accuracy standards. This dedication to quality guarantees exceptional performance in real-world applications.
Product sample
• This cutting-edge CNC machine center integrates milling, drilling, and tapping functionalities, offering an all-in-one solution for diverse machining needs.
• Expertly capable of precisely CNC machining a range of materials from aluminum to steel, copper, and even non-metals, it ensures versatile and efficient production.
• Widely applicable across industries like 3C electronics, rail transportation, aerospace, and linear module guide rails, our machine is crafted to meet the peak of industrial performance standards.
Packaging & Shipping
•Highly Protective: Our innovative packaging solutions ensure your Industrial Cutting Tools arrive in immaculate condition, safeguarded by robust packaging.
•Structural Stability: Engineered to maintain integrity, our packaging protects contents throughout transit.
•Environmentally Friendly and Recyclable: Upholding our commitment to sustainability, our packaging materials are both eco-friendly and reusable.
Professional Team
FAQ
1. What are the Payment Terms?
A: Our payment terms include a T/T arrangement, where an initial payment of 40% is required upon ordering, with the remaining 60% balance due before shipment.
2. What are your trade terms?
A: We accommodate various trade terms including FOB, CFR, and CIF, offering flexibility to match your logistical needs.
3. When is the delivery time?
A: For our standard industrial cutting machines, preparation is typically completed within 30 days. Custom or special machines may require additional time. Please place your order according to the delivery timeline we provide.
4. What is your minimum order quantity and warranty?
A: We have a minimum order quantity (MOQ) of one set and proudly offer a comprehensive one-year warranty on our cutting tools.
5. How are the machines packaged?
A: To ensure safe transport, our machines are meticulously packaged in robust wooden cases.
6. How can I choose the most suitable machines?
A: Simply provide us with your specific requirements and we will recommend the most fitting model for your needs. Alternatively, you may select the exact model that suits you best.
You are also welcome to send us your product drawings, and our team will assist in selecting the most appropriate machines tailored for your applications.

---
