Basic Info.
Range Conversion Type
AUTO RANGZ
Additional Measuring Item
Capacitance
Transport Package
Carton Package
Specification
130mm× 62mm× 27mm
Production Capacity
50000 Set a Month
Product Description
MY8231S MINI Multimeter
product feature
-resistance measure up to 20mΩ with continuity detection
-voltege measurement
-manual power off
-low battery indication
-backlight

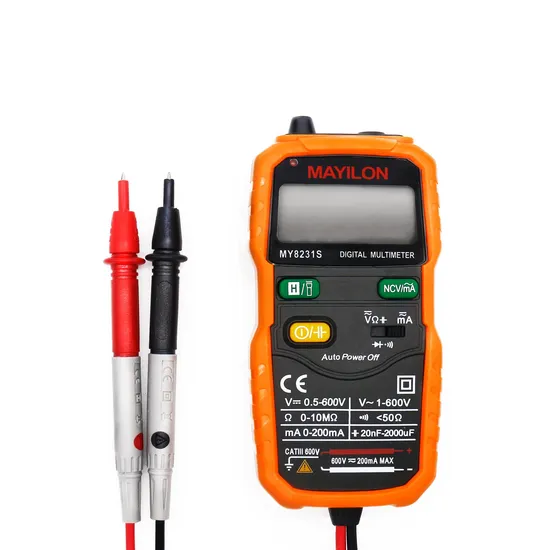

product image
Specifications
Model
| MY8231S
|
Range
| Resolution
| Accuracy
|
DC voltage
| 2V/20V/200V
| 0.001V/0.01V/0.1V
| ±(0.5%+3)
|
600V
| 1V
| ±(0.8%+5)
|
AC voltage
| 2V/20V/200V
| 0.001V/0.01V/0.1V
| ±(0.8%+3)
|
600V
| 1V
| ±(1.0%+5)
|
DC current
| 20mA/200mA
| 0.01mA/0.1mA
| ±(1.8%+5)
|
AC current
| 20mA/200mA
| 0.01mA/0.1mA
| ±(2.0%+5)
|
Resistance
| 200Ω/2KΩ/20KΩ/200KΩ/2MΩ
| 0.1Ω/0.0001KΩ/0.1KΩ/0.1Ω/0.001MΩ
| ±(2.0%+5)
|
20MΩ
| 0.01MΩ
| ±(2.0%+5)
|
Capacitance
| 20nF
| 0.01nF
| ±(10%+40)
|
200nF/2uF/20uF/200uF
| 0.1nF/1nF/10nF/100nF
| ±(2.5%+20)
|
2000uF
| 1uF
| ±(5%+10)
|
Diode
| √
|
On / off buzzer
| √
|
Zero / Firewire Identification
| √
|
Backlight
| √
|
Floodlight
| √
|
NCV
| √
|
Power supply
| 2×1.5V AAA
|
Weight
| 150g
|
Size
| 130mm×62mm×27mm
|
Safety level
| EN61010-1,-2-030,EN61010-2-033, EN613261,CAT.III 600V
|
Matters needing attention
Do not use the instrument around explosive gas or steam or in humid environment
Do not use a damaged stylus. check whether the insulating layer of the stylus is damaged, whether there is metal leakage or signs of wear. check the on-off property of the stylus
When measuring, please connect the neutral line or ground line before connecting the live line. Please cut off the live wire before disconnecting, and disconnect the neutral wire and the ground wire.
When measuring, please hold your finger behind the stylus protector.
Before opening the back cover of the instrument, disconnect the probe from the object to be measured.
Do not use the meter in an environment that exceeds the CAT rating of the lowest rated single component in the meter, probe or accessory.
