Product Description

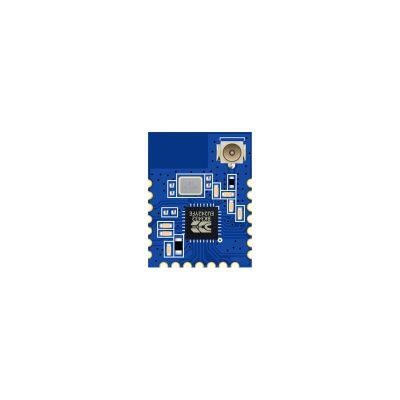

The TS-M1029 is a compact dual-mode Bluetooth module, featuring a Bluetooth 5.0 chip that supports the Bluetooth BLE 4.2 protocol. The dual-mode firmware is compatible with both BLE and SPP protocols and supports AT commands. Users can utilize the provided AT commands to customize serial port baud rates, device names, and other parameters. Additionally, the module’s IO ports can be controlled directly through an app by sending data, offering flexible operation and simple usage. This module boasts excellent stability, ultra-low cost, minimal power consumption, and high reception sensitivity, making it suitable for a wide range of customer development projects.
Model No.: TS-M1029D
Features
Bluetooth Version: BLE 4.2+SPP 3.0
Frequency Band: 2.402GHz-2.480GHz ISM band
TX Power: -20dBm~+4dBm
Receive Sensitivity: -97dBm
Air Rate: 250Kbps/1Mbps/2Mbps
Antenna: IPEX Antenna
Advise Range: 80m
Memory: 160KB FLASH+20KB RAM
Size: 17*13*1.5mm
Pin/GPIO: 21/16
Power Supply: 1.8~3.6V
Operating Temperature: -40℃~+85℃
Peripheral Interface: UART/SPI/I2C/ADC
Serial Transparent Transmission Rate: BLE 4KB/s, SPP 16KB/s
Applications
Smart home
Location tracking
Intelligent educational equipment
Measurement and monitoring system
Industrial sensors and controls
Medical equipment monitoring and wireless control
>>
