4/3m Topping Self-Leveling Telescopic Screed Concrete Floor Leveling Laser Screed

Product Description

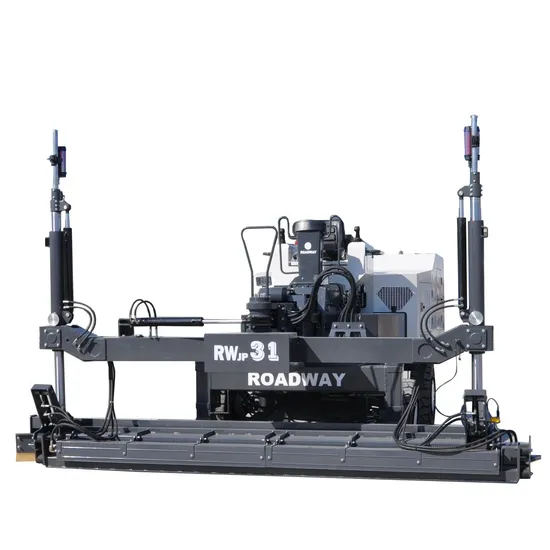

Boom Laser screed RWJP31
CE Self-leveling Telescopic Screed Concrete Floor Leveling Machine Concrete Laser Screed
The Laser Screed is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness. Product Parameters

Model	RWJP31
Type	Boom type
Engine
Model	Yanmar 4TNV98T-ZNLYS
Type	Diesel Engine, Liquid cooled, 4 stroke, 4 cylinder
Power	57.3kW/2400rpm
Engine oil volume	10.2L
Fuel consumption	252g/kwh
Running device
Driving	4 Hydraulic drive motor
Wheel	Antiskid tyre
Steering	Front Wheel/ 4-Wheel/ Crab-shaped turn
Outrigger	4 legs, Self-leveling
Working Speed	0-8km/min
Driving Speed	22m²/min
Screed head
Type	Self-leveling
Arm Length	6000mm
Width	3850mm
Paving type	With auger
Auger force	Hydraulic motor
Exciting force	2000N
Vibration frequency	60Hz
Swing Angle	±45°
Screed head control	Ratio control
Height of screed head	560mm
Control accuracy	±1.5mm
Laser control system
Control type	Microcomputer laser scan
Control effect	Flat, slope or double slope
Operation mode
Chair position	Ride-on forward type
Forward and reverse	Handle control, stepless speed walking
Telescopic arm	Handle control, stepless speed
Steering	Hydraulic intelligent control
Cleaning system
Power	Hydraulic motor
Theoretical flow	20L/min
The Max pressure of inlet	0.5Mpa
Rated pressure	7MPa
Fuel tank volume	150L
Hydraulic oil volume	150L
Size and Weight
Outline dimension	5200×4350×3700mm
Weight	8200kg

Detailed Photos

Working

Packaging & Shipping

FAQ

1.Does your product support customization? Can I put my logo on the product?
Yes,we support customization, labeling and color change.
2.What is the packaging of the product?
Smokeless plywood.
3.What certificates does the product have?
CE,ISO9011.
4.What is the minimum order quantity?
1 unit.
5.What information do I need to provide for a quotation? Do you have a product quotation sheet?
Leave your contact information and we will contact you ,send you our quotation.
6.How long does the delivery time usually take?
Usually is 15-30days.
7.Does your company provide after-sales service?
1 year warranty,If there are quality problems with the accessories during the warranty period, we will replace them free of charge. We are not responsible for any human caused issues.

---
