| US$25,600.00-31,000.00 | 1 Piece (MOQ) |

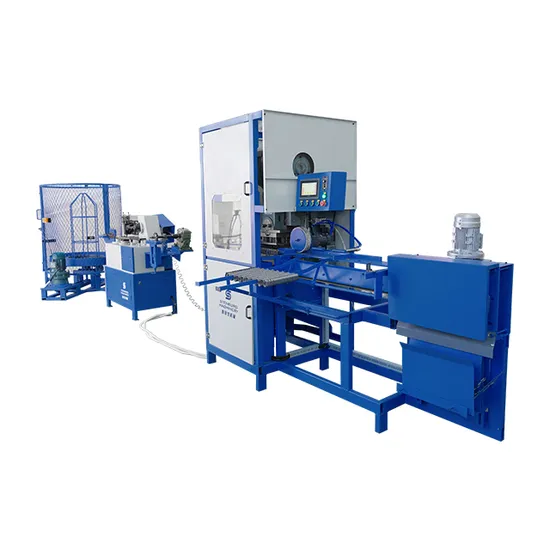

| Spring forming Machine | |
| Available Wire Diameter | Φ2.5-5.0mm |
| Spring Pitch | 16-60mm |
| Available Spring Height | 28-100mm |
| Spring wire diameter | 2.0-2.4mm |
| Cutting length at one time | 200-800mm |
| Power height of S-shape spring | 40-50 mm |
| Capacity | 280 peak/min |
| Motor Power | 4KW |
| Weight | 1000KG |
| Spring Cutting Machine | |
| Cutting length at one time | 200-800mm |
| Proper height of S-shape spring | 40-50mm |
| Cutting type | Adjustable single,double peak |
| Proper Spring Pitch | 20-30mm |
| Diameter of Spring | 3.0-4.0mm |
| Feeding Speed | 0-24m/min |
| Norminal Pressure | 30KN |
| Total Power | 4KW |
| Weight | 950KG |
