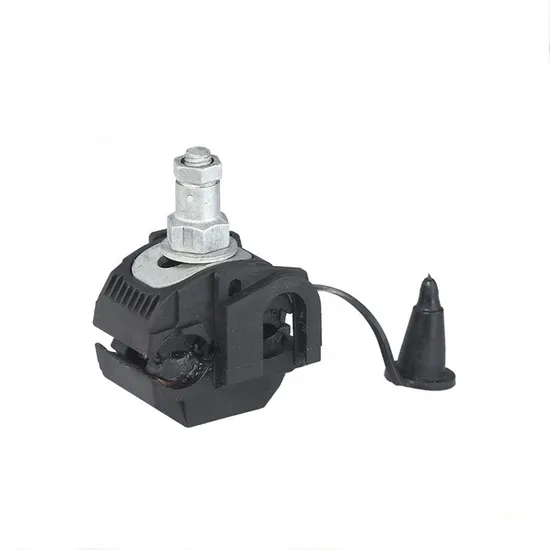

Sm2-95 16-95 4-35 (50) Sqmm Ipc Insulation Piercing Connector for Lower Voltage Overhead Electrical Distribution

Product Description

General of insulation piercing connector(lPC)
1. Piercing connector, simple installation, need not strip the cable coat. 2 .Moment nut, piercing pressure is constant, keep good electric connection and make no damage to lead 3. Self-seam frame,wetproof, waterproof, and anti-corrosion, extend the using life of insulated lead and connector 4. Adopted special connecting tablet, apply to joint of Cu(Al) and Cu(Al) or Cu and Al 5. Small electric connecting resistance, connecting resistance less than 1.1 times of the resistance of branch conductor with the same length 6. Special insulated case body, resistance to illumination and environmental aging, the insulation strength can up to 12KV 7. Arc surface design; apply to connection with the same (different) diameter, wide connection scope (0.75mm2-400mm2)

Technical Data
Item No	SM2-95
Main Line section	16-95mm2
Branch line section	4-35(50)mm2
Nominal current	214A
Bolt No.	1
Weight	198g
Piercing depth	2mm
Size	48X28.5X34CM

PRODUCT PART FIGURE SHEAR HEAD:More than 80% similar factories come from our factory in China.
Insulated shell: Made of high-quality insulation and flame retardant material, the shell is hard and not easy to break,
corrosion-resistant, aging-resistant, and more durable.
Seal:6KV underwater test qualified.
Tooth: aluminum alloy teeth is very hard,(90.2-105HB). Other factories are 60-70HB.
End cap:Quality guarantee 36 month after assembly. Standard: EN50483-4 ; NFC-33-.20
Company Profile Zhejiang Smico Electric Power Equipment Co.,Ltd. Located in Liushi Town,Yueqing City,the China Electrical City. Have conveniently
traffic 25km respectively from Wenzhou airport and railway station,and 5km from 104 national road freeway.
We specialized in manufacturing Aerial electrical fittings,Cable and wire terminal,Power
connectors,Insulator,Arrester,Switch.Since we founded,we insisted to carry on the strategy to provide the top quality
products,competitive price,perfect after-sale service,prompt new products developing to satisfy customers' demand. Therefore,our
products have gained a strong reputation throughout the Europe,Noth American,South American,Middle East and Southeast Asia,etc.
As we strive to hold on our promise of "Human Oriented,Technology Advanced",we make hard effort to increase our global market
presence. We strictly produce the goods accordance with the ISO9001,and most of for our products have the CE and CB certificate.
We will improve ourselves all the time and sincerely invite you who interested in our products to develop the business together.We
are always your electrical friends.

---
