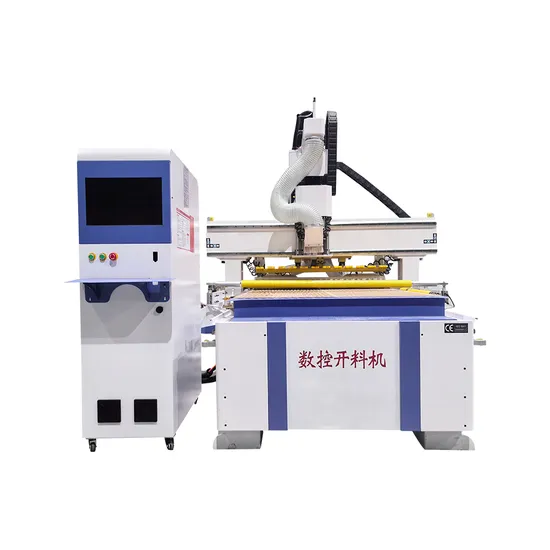

CNC Router Engraving Machine with Atc Automatic Loading and Unloading

Product Description

Product Description
Application industry
Suitable for the production of various panel furniture and complex door
processing.
For example: cabinet, closet, cabinet door,wooden door,closet door,sliding door,wine cabinet,shoe cabinet,tatami bed,panel furniture,solid wood furni- ture,office furniture engraving, milling,open material, punching,etc.
Machine Futures
CNC line tool processing center, using a 9kw tool changing spindle,12- 20 line tool magazine. lt can meet the processing and production of all kinds of panel furniture, all kinds of complex door plate engraving processing.Realize one machine for multiple uses,high cost performance. lt can be equipped with double station or automatic loading and unloading device to further improve the work efficiency.

Product Details
ELECTRIC OILING PUMP
It is mainly for lubrication of moving parts such as guide rails and screw, which greatly improves the service life, without manual operation, automatic lubrication at regular intervals, low noise and high efficiency.
MACHINE WARNING LIGHT Material using ABS engineering plastic, LED light source, long life, high strength, good toughness, high temperature resistance.corrosion resistance, etc.; if the air pressure is lower than 0.6 MPA warning light will emit a beeping sound to protect the accessories from damage.

OIL DIVIDER
Adopting volumetric oil row, it can deliver lubricating oil to each lubrication point according to the specified amount without manual adjustment, so that all sliders can get equal amount of lubricating oil with good lubrication effect.
CABLE WIRE
The machine adopts double sheath high flexible shielded cable, The outer side adopts flame retardant PVC sheath,The shielding layer adopts tinned shielding mesh.With reinforced anti-pulling rope in side. Strong abrasion resistance,good water resistance, and anti-pulling off.
HAND WHEEL
Hand wheel with spiral wire with shield wire, water-proof and oil-proof, strong anti-interference ability, long distance transmission shell material wear-resistant and fall-resistant, waterproof and dust-proof.
INTEGRATED DIRECT MOUNT
The ball screw and servo motor mounting parts are integrated, and this structure can effectively reduce the error between the two axis. Concentricity is high and will not deviate from the center, Effectively avoid the phenomenon of broken shaft of the screw and broken coupling. The motor mount is made of high quality medium carbon steel,which is impact resistant and durable.
VOLTAGE PROTECTOR Can set over voltage value, under voltage value, action time. LCD screen can display voltage value, fault status, record fault function. Protect the machine other electrical accessories from damage.
OMRON LIMIT
High output power, stable operation and long life. Rugged casing, high sensitivity,fast frequency response,and high repeat positioning accuracy
REDUCER
The reducer block is installed at the back of the reducer, which improves the stability of the reducer during operation and effectively avoids the gap between the tooth shaft and the rack at a later stage.
MACHINE HEAD
Adopt aviation aluminum material head.high strength, high hardness,good toughness, good fatigue resistance, no grit, no deformation.

Technical Parameters

product model :	1325 inline tool change cnc router
processing area :	1300*2500mm
running speed:	running speed 0-100m/min; processing speed 15m-30m/min
spindle power:	9kw tool changer spindle, 3000-24000 rpm
operating system:	optional Taiwan LNC or Taiwan SYNTEC system
drive system:	high speed and high torque servo motor (Dongling servo motor, Leadshine servo motor, Delta servo motor. Yaskawa servo motor optional)
reducer:	Japan Shimpo reducer or Germany Newgear reducer
transmission parts:	German rack and pinion, Taiwan brand guide rail
table form:	special design structure, super vacuum adsorption table thickened table structure, high level and no deformation.
parts:	7.5/11KW vacuum pump, 4KW double tube high power dust collector.
wire standard:	10 square 4 core copper wire for machine/ 6 square 4 core copper for vacuum dust collector pump.

Application
Suitable for the production of various panel furniture and complex door processing. For example: cabinet, closet, cabinet door, wooden door, closet door, sliding door, wine cabinet, shoe cabinet, tatami bed, panel furniture, solid wood furniture, office furniture engraving, milling cutting, punching,etc.

About US

Shandong Laser inteligent Equipment Co., Ltd, was established in 2018, specializing in the production and sales of various types of fiber laser cuting machines, fiber laser cutting machines for metal plates and metal pipes, exchange platform fiber laser cuting machines, fully enclosed fiber laser cuting machines, etc.. As well as the production of laser welding machines, laser cleaning machines, plasma cutting machines and other equipment. Our products are widely used in industries such as automoble manufacturing, agricultural machinery, electrical chassis, kitchen cabinets, sheet metal fabrication, large heavy industries, medical equipment, fitness equipment and advertising decoration.
Packing and Delivery
FAQ 1.I need a CNC router, can you give me some suggestions?
A: Sure, we will give suggestions of the most suitable machine. Before that.we need to know some information, such as effective processing area,materials, etc., to determine the main parameters.
2.Which kind of materials can be processed on this machine?
A:Wood,mdf, stone, acrylic, glass, plastic, foam, aluminium, copper, and almost all kinds of non-steel materials.
3. Are you a factory or trading company?
A:We are the manufacturer and we have 10 years factory experience. As only the machine made by ourselves, the quality can be trusted, and the most important thing is that we can do better after-sales service. We know how to fix the problem of every part easily,so welcome to visit to our factory. 4. How should I pay for my order ?
A: You need to pay 30% as prepayment at first, then we will start to make production.When the machine is completed, we will send pictures or videos to you, and then you need to pay the balance. We will ship the machine to you after we receive your full payment.
5.How long is the delivery time?
For standard machines, it will be 7-10 days; For non-standard machines and customized machines according to clients' specific requirements, it will be 15 to 30 days.

---
