Product Description
Product Description
Product Usage and Features
GTJ-P800 Wireless Pile Integrity Tester
PRODUCT OVERVIEW
Wireless Pile Integrity Tester is a kind of test and analysis instrument for pile body structural integrity of engineering foundation pile under impact or vibration load in the process of pile foundation integrity detection and pre-pile driving monitoring.
PRODUCT FEATURES1.New upgraded wireless cloud transmission function;2.The operation of the instrument is convenient and fast. From the requirement of engineering inspection, the user can quickly master the usage method;3.Small size, light weight, easy to carry;4.The user operates through the touch screen, and the interface is simple;5.Support multiple waveform processing methods to make defect positioning more accurate;6.large-capacity data memory, support for mobile storage;7.Built-in rechargeable lithium battery, long standby time;8.The analysis software under Windows platform has comprehensive functions and flexible printing settings. It can print preview and output processing results, and can generate test reports.
Technical Parameters
Model
| GTJ-P800
| System noise voltage
| ＜ 2mV
|
Dynamic range
| ＞ 138 dB
| Amplifier band
| 10Hz ~ 10kHz
|
A/ D resolution
| 16 bit A/ D
| Magnification
| 1 ~ 128 times
|
Sampling interval
| 2us~32768us
| Sample length
| 1024,2048,4096
|
Time indication error
| ＜ 1%
| Channel numbers
| Single channel
|
Sensor sensitivity
| 100mV/g
| Sensor band
| 1-10000Hz
|
Continuous working time
| ＞ 10 hours
| Operating mode
| Touch
|
Working environment
| Temperature: -10 ~ 40 ℃ Humidity <90% RH
| Power supply mode
| Built-in rechargeable lithium battery (7.4 V)
|
Detailed Images

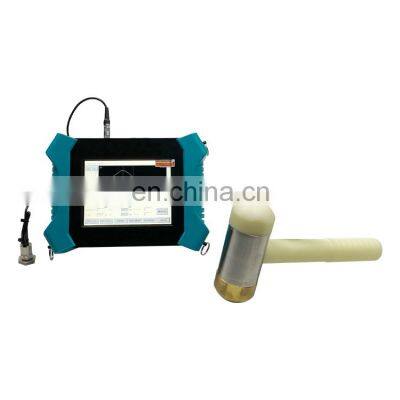

Wireless Pile Integrity Tester
Small size, light weight, easy to carry;
The user operates through the touch screen, and the interface is simple;
Support multiple waveform processing methods to make defect positioning more accurate;
Large-capacity data memory, support for mobile storage;
Company Introduction
Cangzhou Lovely Technology Co., Ltd.
It is a professional manufacturer specializing in Testing Equipment which service for construction, railway, highway, water conservancy, electric powder etc. We have factories in Beijing and Hebei. It covers about 3000square meters, contains development department, laboratory for equipment. There has more than 20 technicians and 30 varieties of testing equipment.
Packing & Delivery
Welcome to visit us for better business cooperation!
After Sales Service
FAQ
Q1: How long is the lead time?A: Normally 3-7 days. Depend on the order quantity.Q2: What is the transportation method?A: By Express, By air or By Sea.Q3: What are the payment terms?A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.Q4: How is the after-sales service?A: 12 months quality warranty with online technical support.Q5: Are there any factory quality certificates?A: We have the ISO certificate and National patent certificates.Q6: Is Lovely test trustworthy?With more than 12 years' production experience. We would give you an excellent experience!
>>
