CO2 Air Quality Monitor with Dual Beam Ndir Sensor for Home, Greenhouse and Indoor Plant.

Product Description

Product Description
AG700 is a 3 in 1 Desktop CO2 Monitor measures the indoor air quality index, including the CO2, TEMP, and RH. By using Dual Beam NDIR technology, it provide accurate CO2 readings ranging from 0 to 5000 ppm. It has Human and plant modes built in.
In human mode, it is useful in verifying indoor air quality for home, office, school, restaurant, library, station, or vehicle interior.
In plant mode, it is a guardian for users to control CO2 level in greenhouses or hydroponics to achieve the goal of efficient plant growth and increase yield.
Basic Info:

Model NO.	AG700	Power Source	USB Type-Micro
Trademark	NA	Origin	China KunShan
Sensor Type	Dual-Beam NDIR	HS Code	9027100090
CO2 Range	0~5000ppm	Production Capacity	80000 Pieces/Year
Temperature Range	0~50ºC(32°F to 122°F)	Transport Package	Carton
RH Range	0-100%	Package Type	1 pcs/Color Box
Battery	External	Weight	148g Device only
Single Package Size	120*91.2*27mm (4.7*3.6*1.1inch)

Feature:
Ø Dual Beam NDIR (Non-Dispersive-Infrared) technology is used to improve the long term stability.
Ø CO2/Temperature/RH Monitor; Tracer
Ø Chart with variable time Zoom Levels
Ø Build-In Plant Types Directory
Ø 3-color LED (green / yellow / red) gradually changes color with CO2 concentration.
Ø Foolproof "Hold Home" function.
Ø CRR, CO2 Replenish Reminder.

Operating Instructions

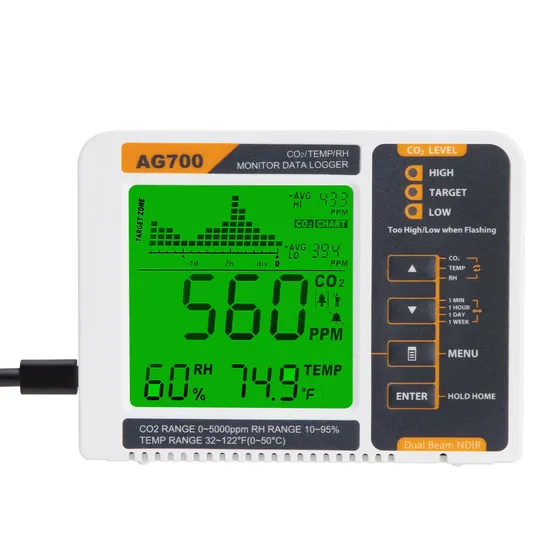

LCD Display:
Trend Chart:
The trend chart (1) displays the past readings for any of the three parameters (CO2/Temp/RH). There are 4 modes that can be toggled by using UP key: CO2, TEMP, RH, and Cycle (automatically cycles through CO2/Temp/RH), as shown below
Trend Chart Zoom:
Below is a table that show the available Zoom Levels for all parameters CO2/Temp/RH, as well as the duration of each division for corresponding Zoom Levels:
LED Display:
CRR Function:
Predicts the remaining CO2 supply and reminds the user to add or replace the CO2 generator. For example, hydrocarbon fuel, fermentation (sugar + yeast), etc.

Specifications
Typical test conditions, unless otherwise specified: Ambient Temp =23+/-3°C, RH=50%-70%, Altitude=0~100 meter

Measurement	Spec
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating & Storage RH	0-95%, non-condensing
CO2 Measurement
Accuracy at 0~3000ppm	±50ppm or ±5% of reading, whichever is greater
Accuracy over 3000ppm	±7%
Repeatability	20ppm at 400ppm (standard dev. of 10 readings in 1 minute)
Measurement Range	0-5000ppm
Display Resolution	1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
Temp Dependence	±0.1% of reading per °C or ±2ppm per °C, whichever is greater, referenced to 25°C
Pressure Dependence	0.13% of reading per mmHg (corrected by user's altitude input)
Response Time	<2min for 63% of step change or <4.6min for 90% step change
Warm-up Time	<30 sec
Temp Measurement
Operating Temperature	32°F to 122°F (0°C -50°C)
Display Resolution	0.2°F (0.1°C)
Accuracy	±1°F (±0.5°C)
Response Time	<20min (63%)
RH Measurement
Range	0-100%
Accuracy	±5%
Resolution	1% on Main Reading, 0.1% on Max Min Reading
Power Requirements	160mA Peak, 15mA average at 5.0V
Battery Life	Battery is not included. below is calculation by theory: (reference only, not a guarantee) For 5000mAh battery, 200Hr/8.3day
Dimension	120*91.2*27mm (4.7*3.6*1.1inch)
Weight	148g ( 5.22oz) Device only, AC Adapter not included

Application
