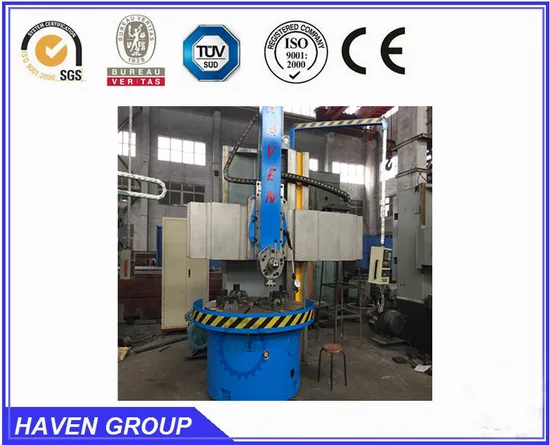

CK5112 CNC Vertical Lathe Machine
Main feature:
High precision, high rigidity, high stabiltiy, high efficiency
1. Introduce finite element analysis and design especially about high-efficiency, high-rigidity, heavy-cutting etc.
2. Column and table base use large-size box structure, supplying with the largest Z axis section size of RAM(230*200) and supporting super-heavy cutting.
3. Symmetrical structure avoids hot deformation, reasonable structure and temper to ensure long-term stability of machine's precision.
4. Spindle direct bearings use P4 step double rolling bearings, axle bearings use P4 step large size thrust bearings, which can ensure high rotary precision and high carrying capacity.
5. Hydraulic system uses outside cycling to cutting heat of machine. When the machine is working, the pump works under unloading, which avoids raising machine's temperature. When the machine is equipped with second spindle, it is with oil cooler.
6. Big diameter ball screw and X axis ball screw pre-pull structure ensure high precision and compensate hot deformation.
7.Double doors design is convenient to unload parts, operating button panel can be turn 90
8. CNC system uses Siemens or FANUC.
9. Users can choose configuration of standard, heavy-loading, high-speed and can choose ZF two-part speed box or our company's four-part speed box.
10. Building block design and up to 16 modification products can supply a best and economic product.
Main Specification:
Name | Unit | CK5112 | CK5112A | CK5112ATC | CK5116 | CK5116A | CK5116ATC |
Machining range |
Max.turning dia | mm | 1250 | 1250 | 1250 | 1600 | 1600 | 1600 |
Table diameter | mm | 1100 | 1100 | 1100 | 1450 | 1450 | 1450 |
Max.height of workpiece H | mm | 1200 | 1200 | 1200 | 1200/1600 | 1200/1600 | 1200/1600 |
Max.weight of workpiece | t | 5 | 5 | 5 | 8 | 8 | 8 |
Range of movement |
Travel of X-axis | mm | 900 | 900 | 900 | 1225 | 1225 | 1225 |
Travel of Y-axis | mm | 900 | 900 | 900 | 1000 | 1000 | 1000 |
Travel of cross beam | mm | 800 | 800 | 800 | 800/1000 | 800/1000 | 800/1000 |
Principal axis | | | | | | | |
Spindle speed | r/min | Fourth gear transmission | ZF transmission | ZF transmission | Fourth gear transmission | ZF transmission | ZF transmission |
Rotate speed of | | 1: 2-10 | Low-speed:2-108 | Low-speed:2-108 | 1:3-14 | Low-speed:2-62 | Low-speed:2-62 |
principal axis | | 2:11-30 | | | 2:15-27 | | |
| | 3:31-100 | High speed:108-300 | High speed:108-300 | 3:28-70 | High speed:62-200 | High speed:62-200 |
| | 4:101-300 | | | 4:71-200 | | |
Maximum spindle torque | kn.m | 21 | 8.2 | 8.2 | 34 | 19.6 | 19.6 |
Feed range of revolution |
Feed range of X-axis | m/min | 6 | 6 | 6 | 6 | 6 | 6 |
Feed range of Z-axis | m/min | 6 | 6 | 6 | 6 | 6 | 6 |
Cutting feedrate | mm/min | 0.001-2000 | 0.001-2000 | 0.001-2000 | 0.001-2000 | 0.001-2000 | 0.001-2000 |
Manual feedrate | m/min | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 | 0-10 |
Auto changer reamer equipment |
Reamer amount | | | | 12 knife spaces | | | 12 knife spaces |
Reame type | | | | 7/24taperBT-50 | | | 7/24taperBT-50 |
Max.size of reame | mm | | | 280*150*400 | | | 280*150*400 |
Max.weight of reame | kg | 50 | 50 | 50 | 50 | 50 | 50 |
Max.load of reame rest | kg | | | 360 | | | 360 |
Change reame time | sec | | | 40 | | | 40 |
Main motor |
Main motor | Kw | Frequency conversion 22Kw | Servo18.5Kw | Servo 18.5Kw | Frequency conversion 30Kw | Servo 28Kw | Servo 28Kw |
X-axis servo motor | Kw | SIEMENS1FK7063 11N.M |
Z-axis servo motor | Kw | SIEMENS1FK7063 11N.M |
Pump servo motor | Kw | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 |
Tank capability |
Hydraulic pressure tank | 1 | 120 | 120 | 120 | 180 | 180 | 180 |
Water tank | 1 | 400 | 400 | 400 | 400 | 400 | 400 |
Lube tank | 1 | 3L X2 | 3L X2 | 3L X2 | 3L X2 | 3L X2 | 3L X2 |
Electric power spec |
Power | kva | 50 | 50 | 60 | 60 | 60 | 70 |
LxW | mm | 4200*3000 | 4200*3000 | 4200*3000 | 4500*3300 | 4500*3300 | 4500*3300 |
Weight | t | 13 | 13 | 14 | 16 | 16 | 17 |
>>
