Product Details
Product Description
Product Description

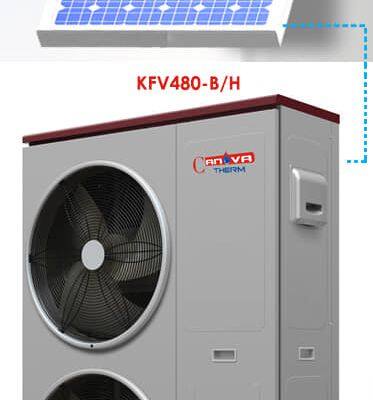

Canova Hybrid Solar heat pump works with solar panel unstable DC power directly from 7am to 17pm day time.
Rainy day, it will work mix power AC+DC and priority from solar power.
At night, it automatically get grid AC power same as Canova normal DC inverter heat pump.
The unit with WiFi function can be controlled anywhere through WiFi or Bluetooth,and App with DC power meter and AC power meter,you can fully check how much energy saving or energy using through App smart power meter function.
Features
Hybrid Solar connection(optional).
Mitsubishu/GMCC compressor with R410A/R32 refrigerant.
Heating + cooling + hot water.
Anti-freezing work in -25 degrees low temperature.
Thermostatic heating element for evaporator and anti-frosting protection.
Energy-saving 80%.
Automatic defrosting function included (With reverse valve inside).
Wilo/Grundfos water pump installed inside.(optional).
OEM/ODM service.
| Model |
| KFV240-B | KFV480-B | KFV480-B/3 | KFV640-B |
| Max Heating Capacity | KW | 12.6 | 23 | 23.2 | 28.5 |
| Heating Capacity Range | KW | 4.2~12.6 | 8~23 | 8.1~23.2 | 10~28.5 |
| Heating (A7/W35) | Capacity | KW | 10.5 | 19 | 19.3 | 25 |
| Input Power | KW | 2.28 | 4.04 | 4.02 | 5.32 |
| Current | A | 10.9 | 19.3 | 7.2 | 9.5 |
| COP |
| 4.6 | 4.7 | 4.8 | 4.7 |
| Heating (A7/W45) | Capacity | KW | 10.3 | 18.2 | 18.6 | 24.3 |
| Input Power | KW | 2.63 | 4.63 | 4.72 | 6.15 |
| Current | A | 12.6 | 22.2 | 8.4 | 11.0 |
| COP |
| 3.92 | 3.93 | 3.94 | 3.95 |
| Cooling (A35/W7) | Capacity | KW | 7.8 | 15.2 | 15.5 | 20.5 |
| Input Power | KW | 2.68 | 5.21 | 5.22 | 6.95 |
| Current | A | 12.8 | 24.9 | 9.3 | 12.4 |
| EER |
| 2.91 | 2.92 | 2.97 | 2.95 |
| Power Supply |
|
| 220V~230V/1PH | 380V~415V/3PH |
| Frequency Range |
| Hz | 30-85 | 30-85 | 30-85 | 30-85 |
| ERP (35ºC) | A+++ | A+++ | A+++ | A+++ |
| ERP (55ºC) | A++ | A++ | A++ | A++ |
| Heating output water temp | ºC | 25~60 |
| Cooling output water temp | ºC | 5~20 |
| Refrigerant | R32 / R410A |
| Controller | LCD Wire Controller |
| Compressor | Brand |
| Panasonic |
| Type |
| DC Inverter Twin Rotary |
| Fan motor | Type |
| DC Inverter |
| PCS |
| 1 | 2 | 2 | 2 |
| Evaporator | Type |
| Hydrophilic Aluminum Fin Heat Exchanger |
| Water side heat exhanger | Brand |
| SWEP |
| Type |
| Plate Heat Exchanger |
| Pressur Drop | kPa | 15 | 25 | 25 | 30 |
| Throttle unit |
|
| Electronic Expantion Valve |
| Water pump (Built-in) | Brand |
| Grundfos |
| Type |
| DC Inverter |
| Head | m | 8 | 8 | 8 | 10 |
| Ambient Temp range | ºC | -30~45 |
| Electric heater (Built- in) | Kw | 2 | 3 | 3 | 3 |
| Expansion tank (Built- in) | L | 3 | 5 | 5 | 5 |
| Water flow | m3/h | 1.8 | 3.3 | 3.3 | 4.3 |
| Pipe size |
| DN32 | DN32 | DN32 | DN32 |
| Noise | dB(A) | ≤58 | ≤63 | ≤63 | ≤65 |
| Dimension | mm | 1060*390*950 | 1060*390*1360 | 1060*390*1360 | 1060*390*1560 |
| Weight | kg | 90 | 140 | 145 | 170 |
Heating test condition 1: Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=30℃/35℃
Heating test condition 2: Ambient temp.(DB/WB)=7℃/6℃, Inlet/Outlet water temp.=40℃/45℃
Cooling test condition : Ambient temp.(DB/WB)=35℃/24℃, Inlet/Outlet water temp.=12℃/7℃
Features
Hybrid solar connection(optional)
Low starting current
High working efficiency
Reliable working
Easy and safe operation with multi-protection
Intelligent controller and adjustment by quick mind microprocessor
>>
