Industrial Emulsifying Machine Mayonnaise Production Line Mayonnaise Making Machine Vacuum Emulsifying

Product Description

AILUSI MachineryManufacturer of Cosmetic | Food | pharmaceuticals|Daily Chemical industrial | GMP StandardProduct Description

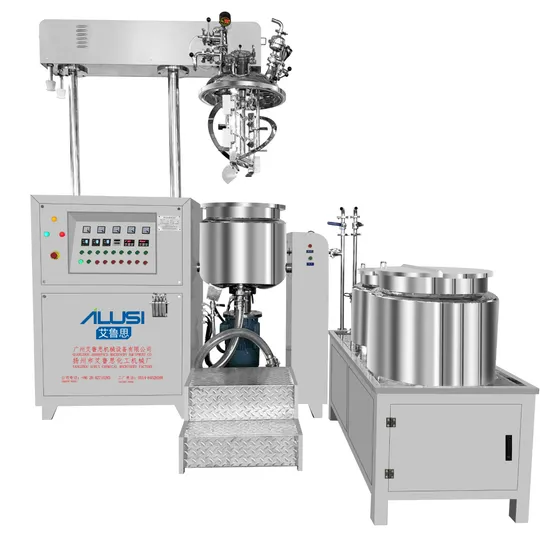

Hydraulic lifting vacuum emulsifying mixer:
The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory . Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, toothpastes, etc. having extremely small particles for chemical, cosmetics, food industries.
Standard configuration
* Emulsifier, water phase tanks, oil phase tank *Vacuum pumps and sync solenoid valves *emulsifier and material filter *Hydraulic lifting system and mixing system*Stainless steel platform*Inverter and electrical control boxWorking Principle
The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.
Vacuum Mixer Homogenizer means when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the machine effect.
Detailed Photos
Specification

Model	Volume	stirring motor(KW)	Homogenizer(kw)	Hydraulic system(kw)	Vacuum pump
AVE-5L	5L	0.37	0.75	0.37	0.37
AVE-10L	10L	0.55	1.1	0.37	0.37
AVE-20L	20L	0.75	1.5	0.37	0.55
AVE-30L	30L	1.1	2.2	0.37	0.55
AVE-50L	50L	1.5	3	0.55	0.75
AVE-100L	100L	2.2	4	0.75	1.1
AVE-200L	200L	3	5.5	1.1	1.5
AVE-300L	300L	4	7.5	1.5	1.5
AVE-500L	500L	5.5	11	2.2	2.2
AVE-1000L	1000L	7.5	15	3	3
AVE-2000L	2000L	11	18.5	/	4
AVE-3000L	3000L	15	22	/	5.5
AVE-5000L	5000L	18.5	30	/	7.5
