3015 4020 6020 6025 Switch Table CNC Fiber Laser Steel Cutting Machine Malaysia Sheet and Tube Machines

Product Description

3015 4020 6020 6025 Switch Table CNC Fiber Laser steel Cutting Machine Malaysia sheet and tube machines I.Features 1. One Machine with Two Functions It can cut both sheet and tube metals, replacing a professional sheet laser cutting machine and tube laser cutting machine in total. For users, it will expand their scope of cutting materials and enhance their market competitiveness. * Save purchasing costs * Improve cutting efficiency * Accept more diversified orders
2.Double Table ,Save time for loading and unloading materials;
3.The cutting area is protected by a cover to prevent splashes and be safe;
4.With a camera, the cutting situation is clear at a glance.
II. Advantages 1.Steel Plate Welding Bed 1.Our laser machine body is welded by plate. After welding, the stress is removed by one-time quenching. After natural cooling, the rough machining is performed, then the stress is removed by two-time quenching, and after natural cooling, the finishing is performed. The equipment within 13m is integral type, and the upper gantry milling machine is processed once.
Body advantage: it is more strong and stable. Using long time, it is also have high accuracy and ensure cutting accuracy.

2.Process dust extraction experts, ship-type box design, partitioned dust extraction, more concentrated and reasonable air ducts, and better dust extraction effect;


2. Cast Aluminum Beam
Adopts aluminum cast beam, light weight, good dynamic response, faster acceleration and better comprehensive cutting effect;
3. Professional sheet tube laser cutting machine system *.Support basic technique of Fly cut, frog-leap lifting, kerf width compensation, lead line, micro-joint, pre-piercing, film cutting etc.
* Provide fine cutting technique, smooth start and end in the toolpath cutting.
* Support intelligent barrier avoidance, laser head frog-leap lifting in production.
* Support scan QR import drawing, task scheduling, and multi-area production etc.
* Maximum acceleration 1.5G.
* Provide dual-Y drive position error detect function.
* support standard tube(rectangle, circle, oval, ellipse and obround etc.) , free form , and steel channels(T/U/H/L shape) production of high precision and efficiency.
* Support offset tube center error in production to improve through holes cutting precision.
* Suppport seperate technique for corner cutting.

4.Intelligent bus control cutting head, Active Collision Prevention It can adjust focal point by itself according to material thickness and apply to multiple focal lengths, reducing punching duration and improving punching quality, moreover, which will perceive the surroundings and lift up to avoid obstacles intelligently; Flying cutting micro-connection, preventing sheet upwarp and realizing high speed and high stability while cutting.

5.Imported Parts, Precision Guaranteed

Equipped with dualhigh-powered servo motors and drivers which from German	Core transmission parts like speed reducer and gears are imported from Japan	High-precision racks,guide rails and ball screws are produced by world-famous brands.

6. Quality Control System
Rigorous quality inspection of the assembly process, perfect quality system, high-precision inspection and inspection equipment: laser interferometer, laser collimator and three-coordinate projector, to ensure that each delivered customer equipment can meet the company's factory quality standards;
III. Parameters

Model	JLMDS3015	JLMDS4015	JLMDS4020	JLMDS6020	JLMDS6023	JLMDS6025
Power	3000W-40000W
Working Area (L*W)	3000*1500mm	4000*1500mm	4000*2000mm	6000*2000mm	6000*2300mm	6000*2500mm
Diameter(mm)	120 / 160 / 220 / 280 / 320 / 350
Tube length(mm)	3000 / 6000 / 7000 / 9000
Maximum revolutions of chuck(RPM)	80-120
X/Y-axis Positioning Accuracy	±0.05mm
X/Y-axis Repositioning Accuracy	±0.01mm
Positioning speed	90m/min
Max. Acceleration	1.2G

*The above data are for reference only, subject to the actual product!

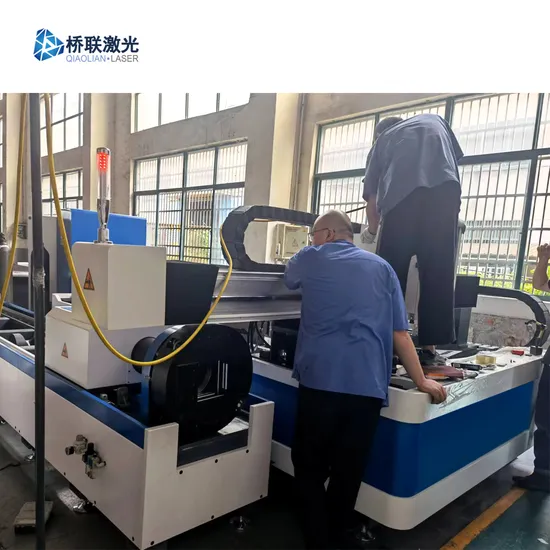

IV. Customers site


V. Cutting samples

---
