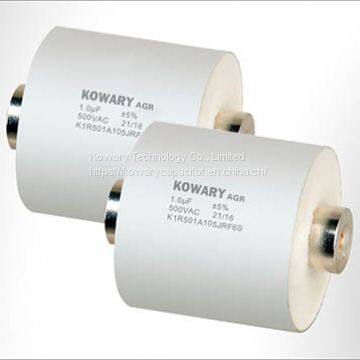

Power Electronic Capacitor High Current AGR

Product Details

Product Details

Product Description

Product Description
■GENERAL TECHNICAL CHARACTERISTICS
Reference standards IEC 61071, IEC 60068
Dielectric Polypropylene film
Construction Dry construction, Non-inductive type
Case Polyester tape wrapping; UL94V-0 resin filling
Output Threaded insert M6 or M8
■ELECTRICAL SPECIFICATION Unit: mm
Part
Number
Capacitance
(μF)
Dimension
Du/dt
(v/μs)
Imax@60℃
10KHz(A)
ESR@10KHz
(mΩ)
Rth
(K/W)
D
L
P
Output
Urms 400Vac, UNDC 1000Vdc, Upeak 565V
K1R401A155KRF##***
1.5
44.0
37.0
48
M6*8
540
43
2.0
11.0
K1R401A305KRF##***
3.0
54.0
40.0
52
M6*8
490
57
1.8
7.4
K1R401A405KRF##***
4.0
62.0
40.0
52
M6*8
490
66
1.8
6.0
K1R401A605KRF##***
6.0
76.0
40.0
52
M8*8
490
83
1.7
4.3
K1R401A705KRF##***
7.0
82.0
40.0
52
M8*8
490
90
1.7
3.8
K1R401A126KRF##***
12
82.0
50.0
63
M8*8
410
96
1.8
3.2
Urms 500Vac, UNDC 1200Vdc, Upeak 710V
K1R501A105KRF##***
1.0
43.0
37.0
48
M6*8
660
40
2.7
11.4
K1R501A205KRF##***
2.0
49.0
40.0
52
M6*8
570
49
2.3
8.6
K1R501A305KRF##***
3.0
60.0
40.0
52
M6*8
570
62
1.9
6.4
K1R501A405KRF##***
4.0
59.0
40.0
52
M8*8
570
73
1.9
5.1
K1R501A505KRF##***
5.0
76.0
40.0
52
M8*8
570
82
1.8
4.3
K1R501A605KRF##***
6.0
83.0
40.0
52
M8*8
570
91
1.8
3.7
K1R501A106KRF##***
10
84.0
50.0
63
M8*8
470
95
2.5
3.2

K1R701A504KRF##***
0.50
42.0
37.0
48
M6*8
1190
36
2.7
11.7
K1R701A105KRF##***
1.0
54.0
40.0
52
M6*8
1190
50
2.5
7.5
K1R701A155KRF##***
1.5
66.0
40.0
52
M8*8
1190
64
2.3
5.5
K1R701A205KRF##***
2.0
76.0
40.0
52
M8*8
1190
77
2.0
4.4
K1R701A255KRF##***
2.5
85.0
40.0
52
M8*8
1190
87
1.9
3.6
K1R701A405KRF##***
4.0
84.0
50.0
63
M8*8
840
87
2.3
3.2
Remark: 1. *** Internal code.
2. Customization for special specification and requirement is available.
